Strain relief combs

Properties

  • Higher fixing force than single-sided strain relief comb.
  • Uniform force transmission in push and pull direction.
test

For separate strain relief or fastening of cables outside of the cable carrier – suitable for all cable carriers.

The strain relief combs are equipped with teeth on both sides. This allows secure fixing of each cable with two cable ties.

  • Secure fixing with two or four cable ties
  • Higher fixing force than single-sided strain relief combs
  • Uniform force transmission in push and pull direction
  • Minimized movement of cables and hoses

Technical data

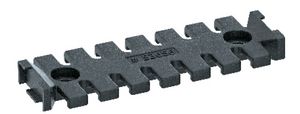

Strain relief comb with C-profile connections
Strain relief devices Strain relief combs C-Profile connections Above
Strain relief devices Strain relief combs C-Profile connections
test
Material no.b1
[mm] 		b4
[mm] 		No. of teeth
53654 49 21 2 x 3
53655 74 46 2 x 5
53656 99 71 2 x 7
53657 124 96 2 x 9
53658 149 121 2 x 11
53659 174 146 2 x 13
76550 54 21 2 x 3
76551 79 46 2 x 5
76552 104 71 2 x 7
76553 129 96 2 x 9
76554 154 121 2 x 11
76555 179 146 2 x 13
Strain relief comb
Strain relief devices Strain relief combs Above 1
test
Material no.b1
[mm] 		b2
[mm] 		b3
[mm] 		No. of teeth
53983 43.2 53 14 2 x 3
53684 60 53 14 2 x 4
57350 61 70 20 2 x 4
Strain relief devices Strain relief combs Above 2

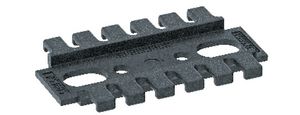

Strain relief devices Strain relief combs Comb
test
Material no.b1
[mm] 		b2
[mm] 		b4
[mm] 		No. of teeth
53984 63.2 53 15.2 2 x 4
53985 83.2 53 35.2 2 x 6
53986 108.2 53 60.2 2 x 8
53685 85 53 25 2 x 6
53686 110 53 50 2 x 8
53687 135 53 75 2 x 10
53688 160 53 100 2 x 12
57351 86 70 20 2 x 6
57352 111 70 40 2 x 8
57354 136 70 65 2 x 10
57355 161 70 90 2 x 12
57356 186 70 115 2 x 14
57357 211 70 140 2 x 16
57358 236 70 165 2 x 18
57359 261 70 190 2 x 20

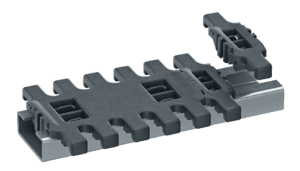

Variable strain relief comb for C-profiles

The variable strain relief combs can be combined with each other as desired in the 1-fold and 5-fold versions and clipped into the C-profiles #3931, #3934, #3935 and 3936.

Strain relief devices Variable strain relief comb for C-profiles Above
Strain relief devices Variable strain relief comb for C-profiles
test
Material no.b1
[mm] 		b2
[mm] 		No. of teeth
3950 12.5 48 2 x 1
3951 62.5 48 2 x 5
