0202

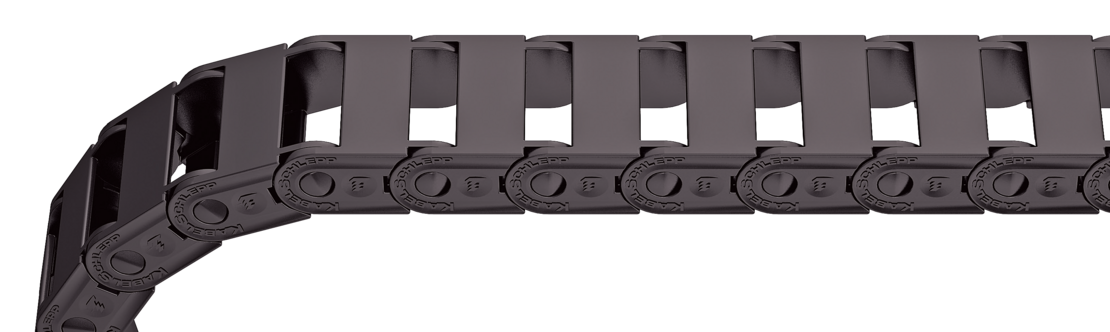

Type 0202 – closed frame

Properties

Weight optimised, closed plastic frame with high torsional rigidity.
Outside/inside: not openable.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 6 – 20 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	q_k [kg/m]
20	11	15	B_i + 7	0.14 – 0.17

B_i [mm]
6	10	15	20

KR [mm]
18	28	38	50

Order example

MONO

Series

0202

Type

B_i [mm]

KR [mm]

460

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: postmaster@metool.com

End connectors

Single-part end connectors – plastic (with integrated strain relief)

The plastic end connectors can be connected from above or below. The connection type can be changed by altering the position of the end connector.

0202 Single-part end connectors – plastic (with integrated strain relief)

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside

Order example

End connector

End connector

Connection point

Connection type

End connector

End connector

Connection point

Connection type
