Q080 RV

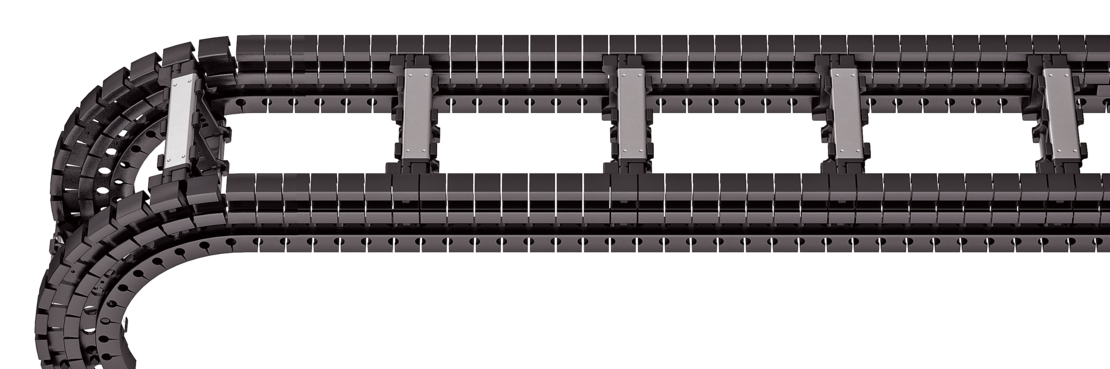

Aluminum stay RV – Frame stay reinforced


Properties

  • Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
  • Available customized in 1 mm sections.
  • Outside/inside: release by rotating 90°.
test
Stay arrangement on every 2<sup>nd</sup> chain link

Stays on every 8th section, standard (HS: half-stayed)

Stay arrangement on every chain link

Stays on every 4th section (VS: fully-stayed)

Inner width (B<sub>i</sub>) in 1 mm increments
Bi 50 – 600 mm in 1 mm width sections

Dimensions

Dimensions
Important information

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Number of glide shoes: Pitch per cable carrier length/4 x 2 -2
t
[mm]
hi
[mm]
hG
[mm]
hG'
[mm]
Bi
[mm] *
Bk
[mm]
BEF
[mm]
qk
[kg/m]
2558808850 – 600Bi + 72Bi + 79.52.10 – 2.90
* in 1 mm width sections
KR
[mm]
170200250320420500
Order example
Order code

Q080

400

RV

250

1600

HS

Our technical support can provide help for gliding arrangements: postmaster@metool.com

Inner distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 8th section for stay mounting (HS).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (Version A).

Divider system TS0

without height separation
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A1114102

The dividers can be moved in the cross section.

Divider system TS0

Divider system TS1

with continuous height separation
Vers.
aT min
[mm]
aT max
[mm]
ax min
[mm]
ac min
[mm]
nT min
A112514102

The dividers can be moved in the cross section.

Divider system TS1

Divider system TS2

with partial height separation
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A1221152

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 4 mm).

Divider system TS2

Divider system TS3

with height separation consisting of plastic partitions
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A816/ 42*82

* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Divider system TS3
Divider system TS3

Aluminum partitions with 1 mm increments with ax > 42 mm are also available.

ax (center distance of dividers) [mm]
ac (nominal width of inner chamber) [mm]
16
8
18
10
23
15
28
20
32
24
33
25
38
30
43
35
48
40
58
50
64
56
68
60
78
70
80
72
88
80
96
88
112
104
128
120
144
136
160
152
176
168
192
184
208
200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 4 mm). Twin dividers are also suitable for retrofitting in the partition system. The height separations VR6 and VR7 are not possible when using twin dividers.

Order example
Order code

TS3

A

3

K1

K4

16

208

VR1

VR7

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

Order example
Order code

UMB

F

U

UMB

M

U

End connector

UMB

UMB

Connection point

F

M

Connection type

U

U

Important information

We recommend the use of strain reliefs at the driver and fixed point.
