Stay arrangement on every 2nd chain link, standard (HS: half-stayed)
Stay arrangement on each chain link (VS: fully-stayed)
The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.
t
[mm]
|
hi
[mm]
|
hG
[mm]
|
hG'
[mm]
|
Bi
[mm]
* |
Bk
[mm]
|
BEF
[mm]
|
qk
[kg/m]
|
---|---|---|---|---|---|---|---|
165 | 108 | 140 | 147 | 200 – 1000 | Bi + 68 | Bi + 68 | 10.50 – 15.30 |
KR
[mm]
| ||||||
---|---|---|---|---|---|---|
250 | 300 | 350 | 400 | 450 | 500 | 550 |

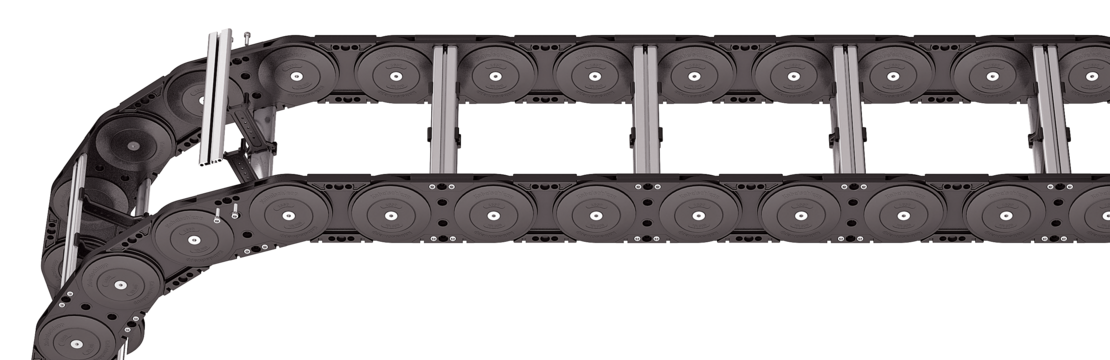

XLC1650
600
RM
350
4125
HS
The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
Vers. |
aT min
[mm]
|
ax min
[mm]
|
ac min
[mm]
|
nT min |
---|---|---|---|---|
A | 6 | 25 | 17 | – |
The dividers can be moved in the cross section.
Vers. |
aT min
[mm]
|
ax min
[mm]
|
ac min
[mm]
|
nT min |
---|---|---|---|---|
A | 1 | 16/42* | 8 | 2 |
* for aluminum partitions
The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.
Aluminum partitions with 1 mm increments with ax > 42 mm are also available.
ax (center distance of dividers) [mm] | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ac (nominal width of inner chamber) [mm] | ||||||||||||||||||||||
16 8 | 18 10 | 23 15 | 28 20 | 32 24 | 33 25 | 38 30 | 43 35 | 48 40 | 58 50 | 64 56 | 68 60 | |||||||||||
78 70 | 80 72 | 88 80 | 96 88 | 112 104 | 128 120 | 144 136 | 160 152 | 176 168 | 192 184 | 208 200 |
When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 5 mm). Twin dividers are also suitable for retrofitting in the partition system.
TS3
A
3
K1
K4
34
38
VR1
VR3
Please state the designation of the divider system (TS0, TS3), the version, and the number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax].
End connectors made of steel. The connection variants on the fixed point and on the driver an be combined and changed later on, if necessary.
F – fixed point
M – driver
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection
I – connection surface inside
A – connection surface outside
Steel
F
A
I
Steel
M
A
I
Steel
Steel
F
M
A
A
I
I
We recommend the use of strain reliefs at the driver and fixed point.
