UNIFLEX Advanced series

Light, quiet all-rounder with a wide range of applications*

* Some features can be different for certain types for design reasons.

Features

  • Extensive unsupported lengths
  • High torsional rigidity
  • Good ratio of inner to outer width
  • Numerous custom material types for custom applications available
  • Easy assembly and fast cable laying
  • Assembly tools available
  • Stays with ball joint opening on both sides
  • Many possibilities for internal subdivision
  • Wear surfaces for gliding applications with extended travel lengths
Long travel length
Cannot be opened
Opens outward
Opens inward
Sliding dividers
Fixable dividers
Height separation possible
Clean room suitable
Quiet running/low noise
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
UNIFLEX Advanced series Features 1
UNIFLEX Advanced series Features 2
UNIFLEX Advanced series Features 3
UNIFLEX Advanced series Features 4

Types

UNIFLEX Advanced series UA1250

UA1250

Inner height [hi]:
17.5 mm
Inner widths [Bi]:
30 – 50 mm
Pitch [t]:
25 mm
Bending [KR]:
28 – 100 mm
more details

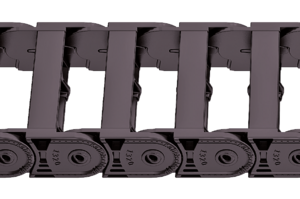

UNIFLEX Advanced series UA1320

UA1320

Inner height [hi]:
20 mm
Inner widths [Bi]:
15 – 65 mm
Pitch [t]:
32 mm
Bending [KR]:
28 – 125 mm
more details
UNIFLEX Advanced series UA1455

UA1455

Inner height [hi]:
26 mm
Inner widths [Bi]:
25 – 130 mm
Pitch [t]:
45.5 mm
Bending [KR]:
52 – 200 mm
more details

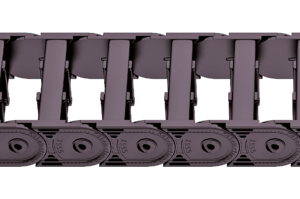

UNIFLEX Advanced series UA1555

UA1555

Inner height [hi]:
38 mm
Inner widths [Bi]:
50 – 150 mm
Pitch [t]:
55.5 mm
Bending [KR]:
63 – 200 mm
more details

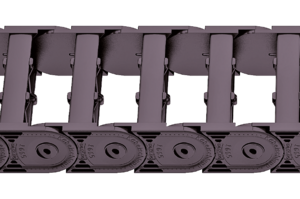

UNIFLEX Advanced series UA1665

UA1665

Inner height [hi]:
44 mm
Inner widths [Bi]:
50 – 250 mm
Pitch [t]:
66.5 mm
Bending [KR]:
75 – 300 mm
more details
UNIFLEX Advanced series UA1775

UA1775

Inner height [hi]:
56 mm
Inner widths [Bi]:
100 – 400 mm
Pitch [t]:
77.5 mm
Bending [KR]:
90 – 340 mm
more details

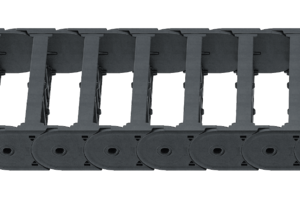

UNIFLEX Advanced series UA1995

UA1995

Inner height [hi]:
80 mm
Inner widths [Bi]:
66 – 600 mm
Pitch [t]:
99.5 mm
Bending [KR]:
150 – 500 mm
more details
Type
hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
UA1250 17.5 30 – 50 25 28 – 100
UA1320 20 15 – 65 32 28 – 125
UA1455 26 25 – 130 45.5 52 – 200
UA1555 38 50 – 150 55.5 63 – 200
UA1665 44 50 – 250 66.5 75 – 300
UA1775 56 100 – 400 77.5 90 – 340
UA1995 80 66 – 600 99.5 150 – 500
