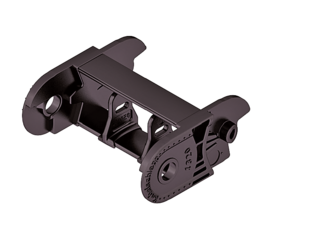

Closed frame
KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
28 | 81.5 | 98.5 | 152 | 73 |
38 | 101.5 | 118.5 | 184 | 83 |
48 | 121.5 | 138.5 | 215 | 93 |
75 | 175.5 | 192.5 | 300 | 120 |
100 | 225.5 | 242.5 | 379 | 145 |
125 | 275.5 | 292.5 | 457 | 170 |
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.40 kg/m with Bi 50 mm. For other inner widths, the maximum additional load changes.
The gliding cable carrier must be guided in a channel. More information
Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.
to TRAXLINE®From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.
to TOTALTRAX®Reliable unrolling and optimum gliding for long travel lengths
to Support traysFor optimum placement with dynamic use of cables
to Strain relief devices
Configuration guidelines:
