UA1455.020

Stay variant 020 – closed frame

Properties

Weight-optimised, closed plastic frame with particularly high torsional rigidity.
Outside/inside: not openable.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 25 – 130 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

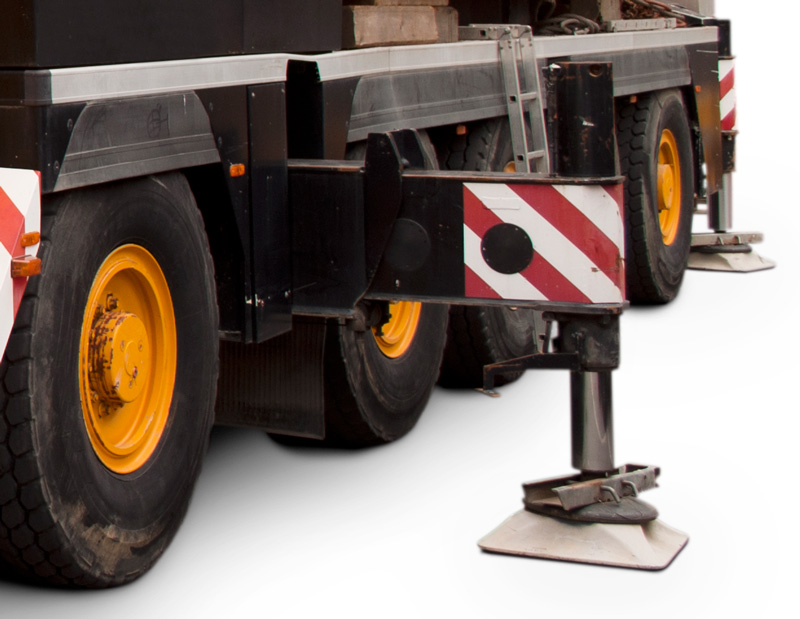

Special version for support legs of commercial vehicles

Special versions for the safe guiding and separating of rigid hydraulic hoses and electric cables in a limited space in extendable support feet of commercial vehicles on request.

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_k [mm]	B_EF [mm]	q_k [kg/m]
45.5	26	36	38.5	B_i + 16	B_i + 19	0.71 – 1.12

B_i [mm]
25	38	58	78	103	130

KR [mm]
52	65	95	125	150	180	200

Order example

UA1455

Type

020

Stay variant

B_i [mm]

150

KR [mm]

1456

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: postmaster@metool.com

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available.
The locking cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	3.5	7	5	–	–
B	4/5**	7.5	5.5	2.5	–

Number of dividers for design 020 depending on B_i
Version B: not for design 020
^**4 mm for B_i 38 – 103; 5 mm for B_i 25, 130

Divider system TS3

with height separation consisting of plastic section subdivisions

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	3.5	15	10	2

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
15 10	20 15	25 20	30 25	35 30	40 35	45 40	55 50	65 60	75 70

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

Universal end connectors UMB – plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from above, from below or on the face side.

Recommended tightening torque:
5 Nm for screws M5 - 8.8

B_i [mm]	n_z
25	2
38	3
58	5
78	7
103	9
130	11

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type

Single-part end connectors short – plastic

The plastic end connectors can be connected from above or below. The connection type can be changed by altering the position of the end connector.

Recommended tightening torque:
6 Nm for screws M6 - 8.8

B_i [mm]	n_z
25	2 x 2
38	2 x 3
58	2 x 4
78	2 x 6
103	2 x 8
130	2 x 10

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

End connector

End connector

Connection point

Connection type

End connector

End connector

Connection point

Connection type

Single-part end connectors long - plastic

The plastic end connectors can be connected from above or below and allow a 1: 1 replacement of the UNIFLEX 0455 in the connection area. The connection type can be changed by altering the position of the end connector.

Recommended tightening torque:
6 Nm for screws M6 - 8.8

B_i [mm]	n_z
25	2 x 2
38	2 x 3
58	2 x 4
78	2 x 6
103	2 x 8
130	2 x 10

The end connectors are optionally also available without strain relief comb (except B_i 25). Please state when ordering.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

End connector U0455

End connector

Connection point

Connection type

End connector

End connector U0455

Connection point

Connection type
