P0240 GS.010

P0240 GS.010

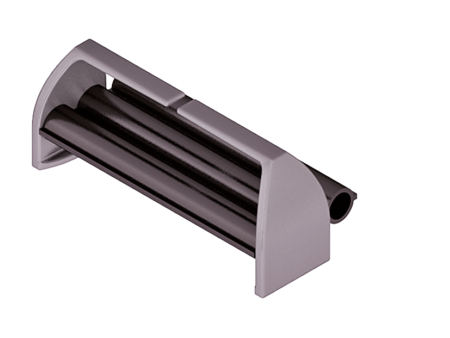

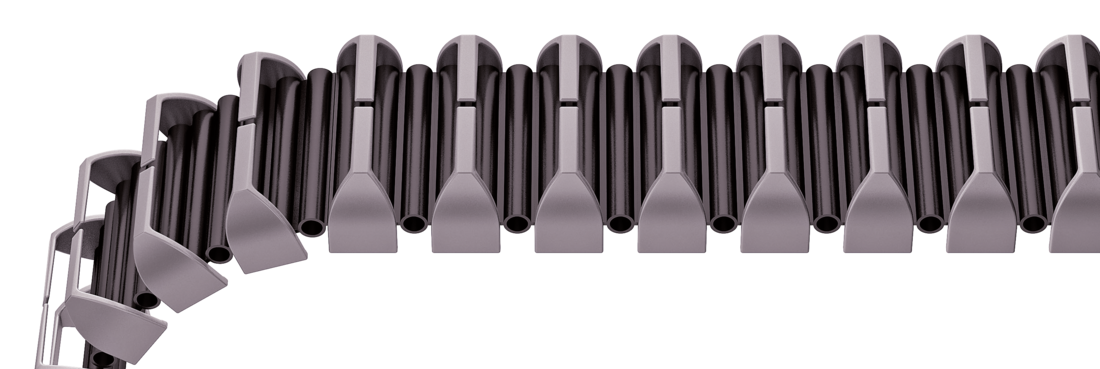

Stay variant 010 – with lamellae in the outer radius

Właściwości

  • Belt with clip-on side parts.
  • Outside: for pressing in.
Stay arrangement on each chain link (VS: fully-stayed)
Bi 50 mm

Wymiary Wymiary

<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]</th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">24</td> <td class="hi red">10</td> <td class="hg">23</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 50 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 4</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.28</td> </tr> </tbody> </table>

Standard colors

Black (RAL 9005)
Mat. no. 75637*

White (RAL 9010)
Mat. no. 75645*

Silver-gray (RAL 9023)
Mat. no. 75641*

* Length: 960 mm

For bulk buyers, the color variants of the belt, the side parts and the connections can be individually combined on request. Colored items may have color differences.

Złączki końcowe Złączki końcowe

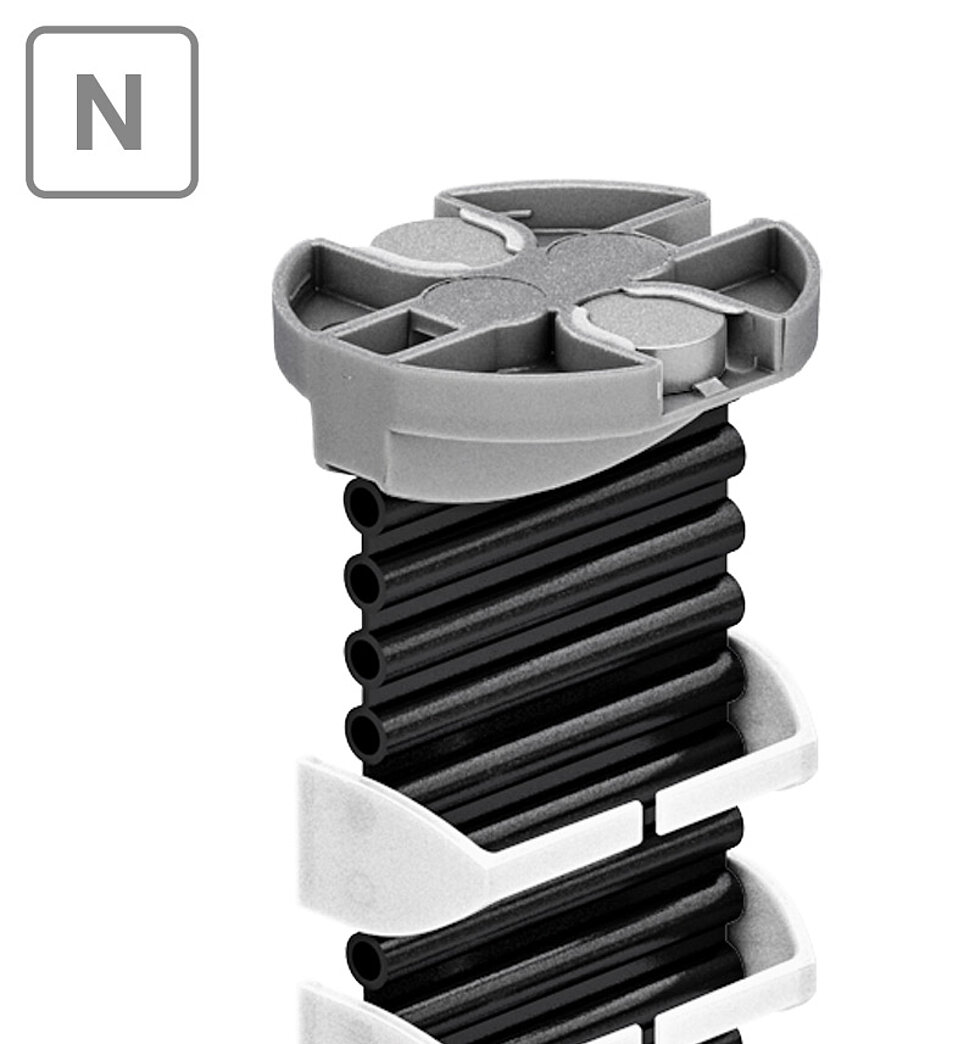

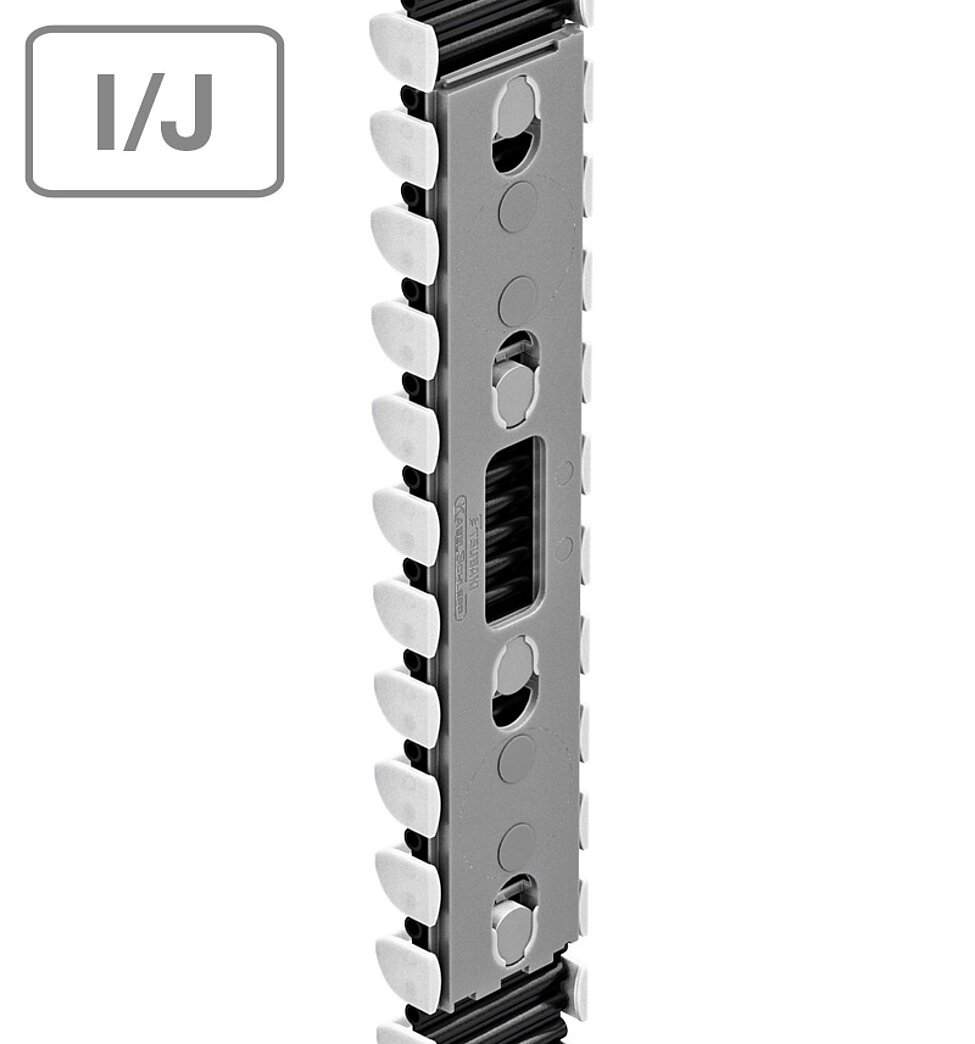

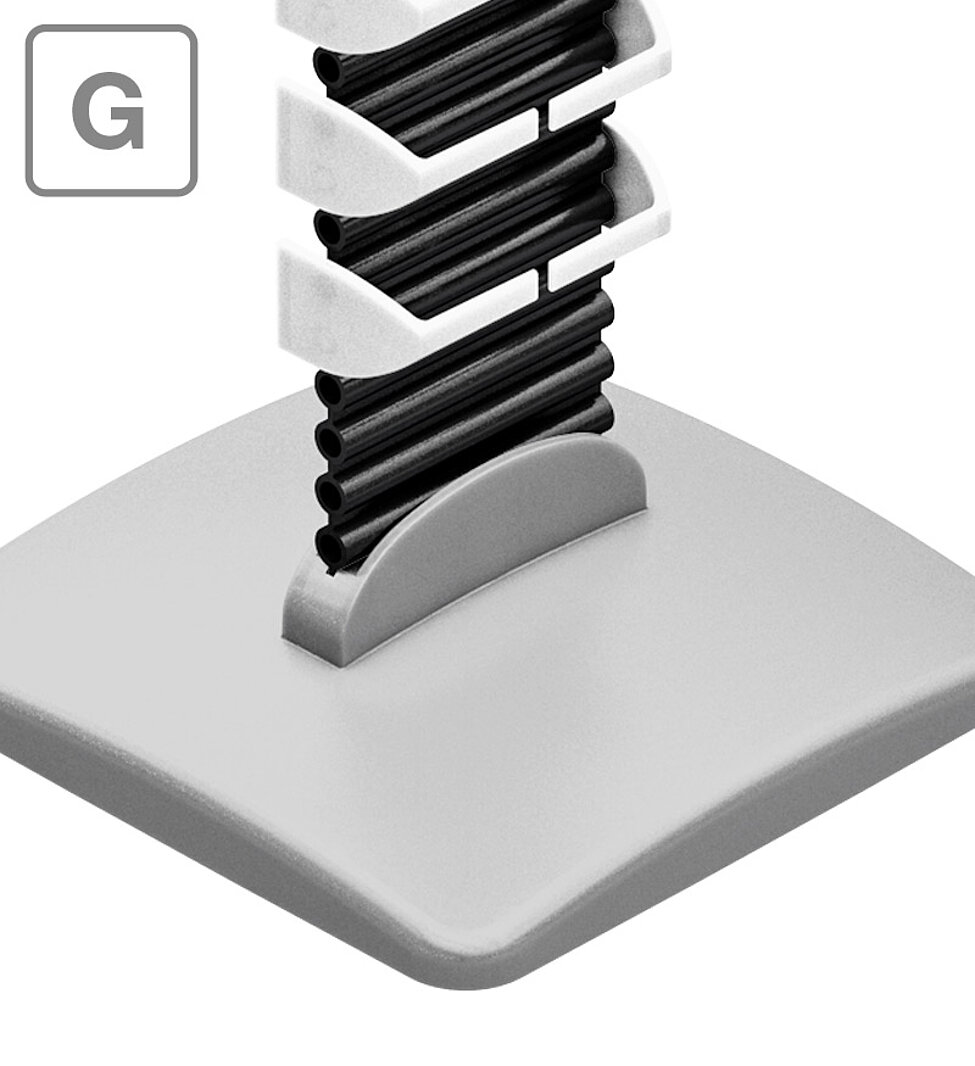

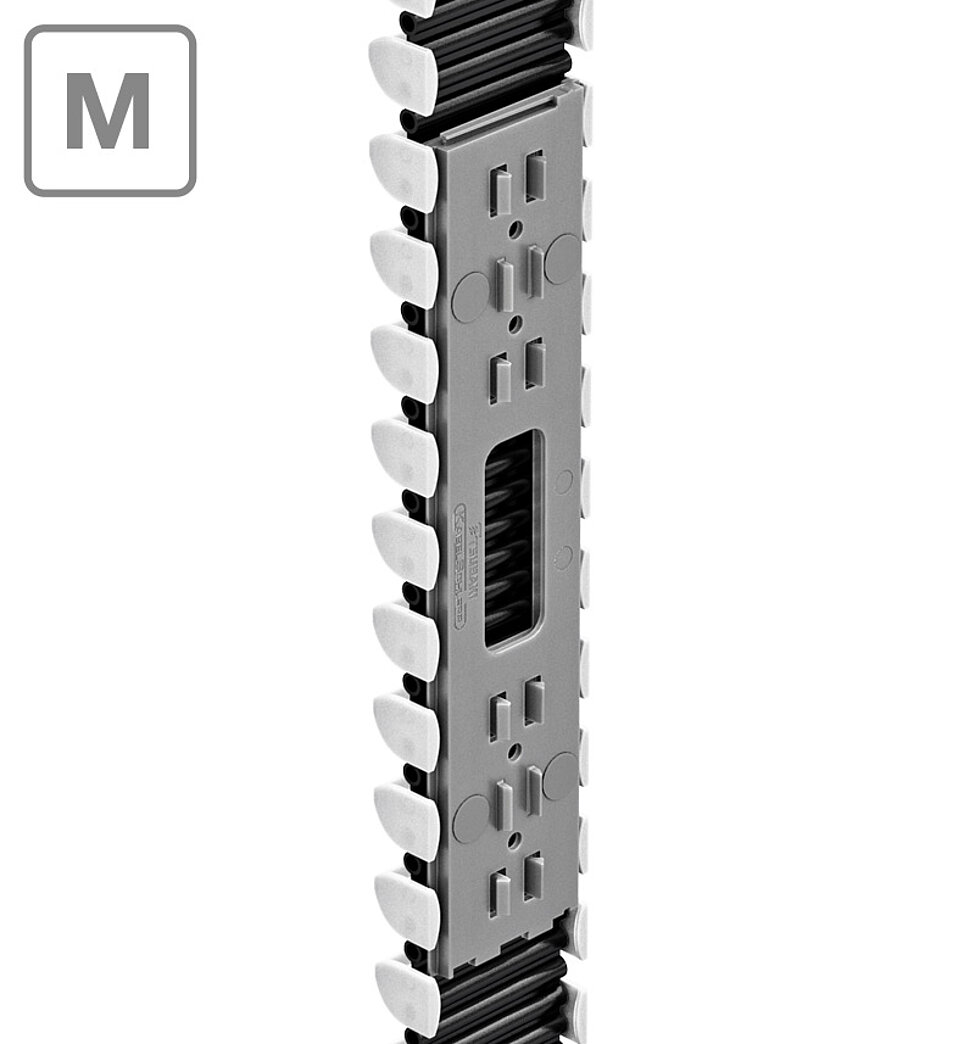

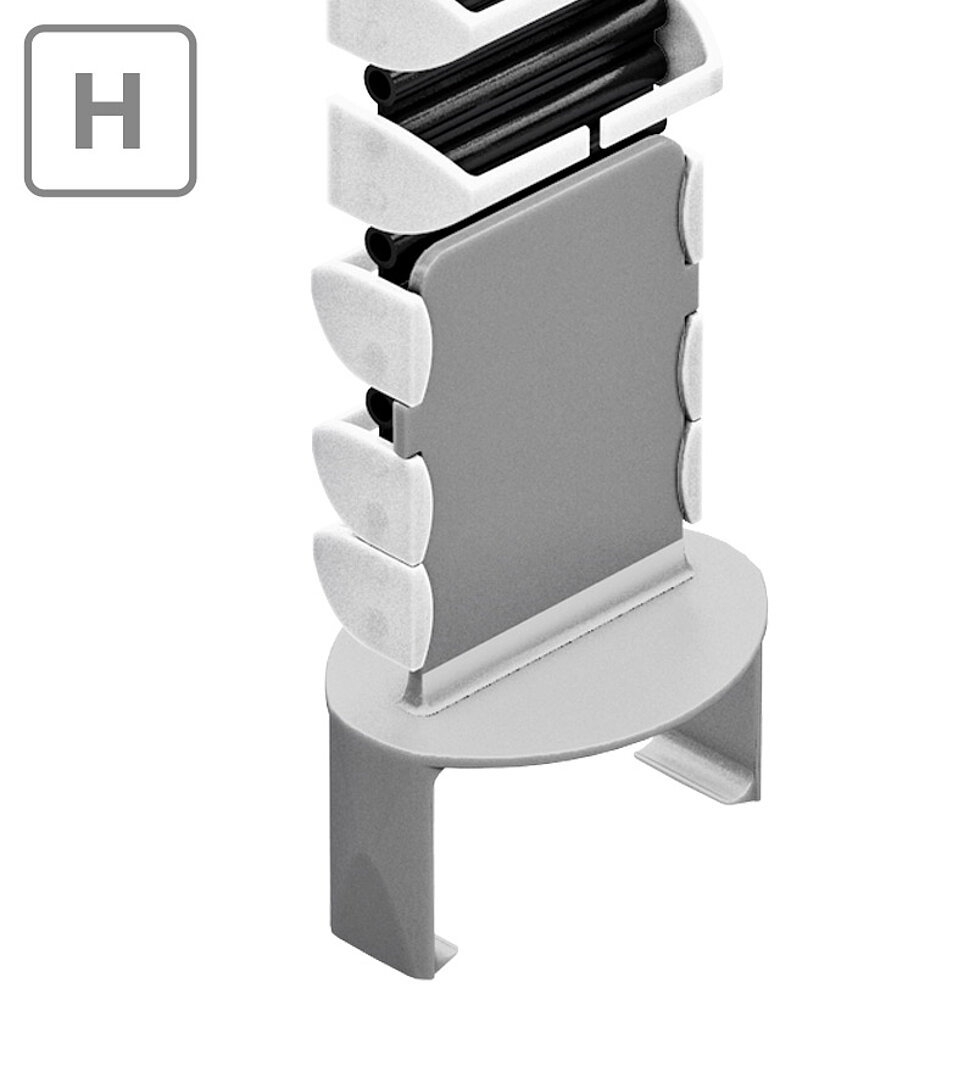

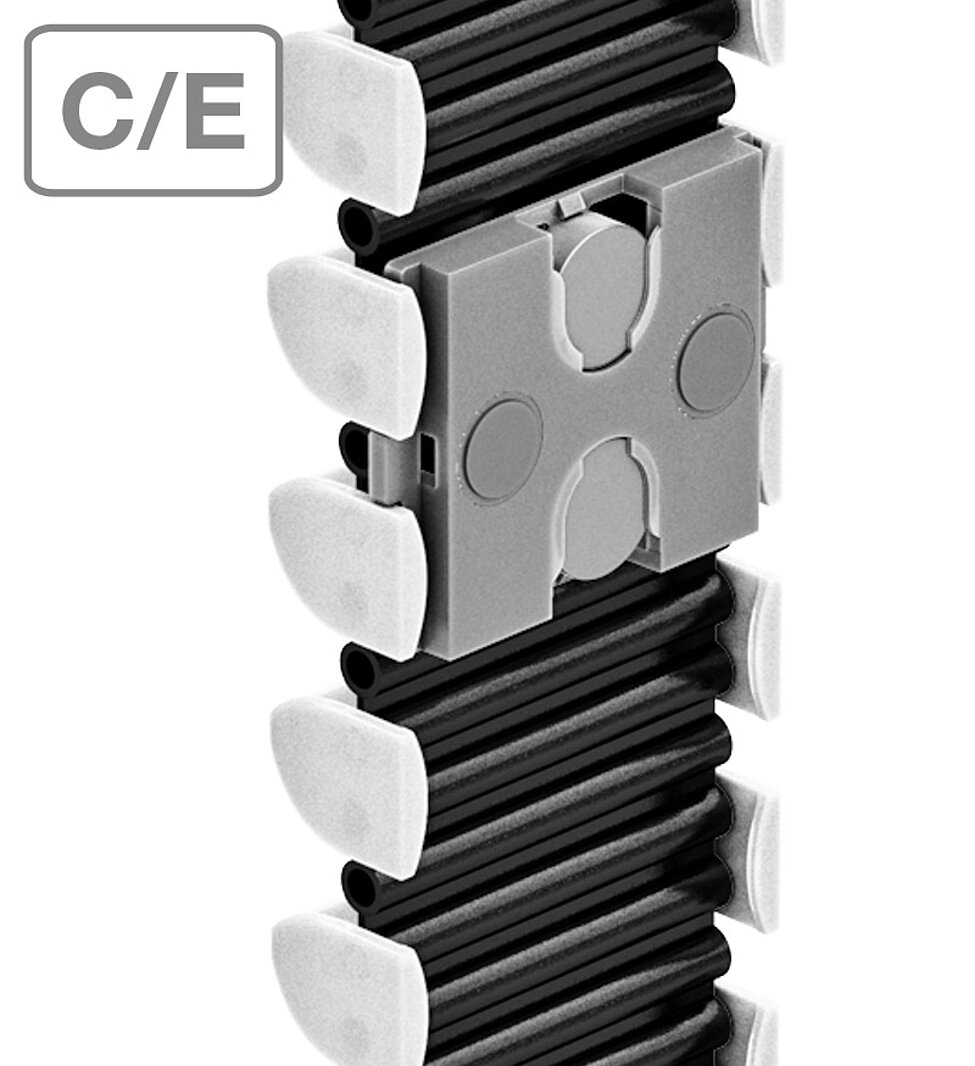

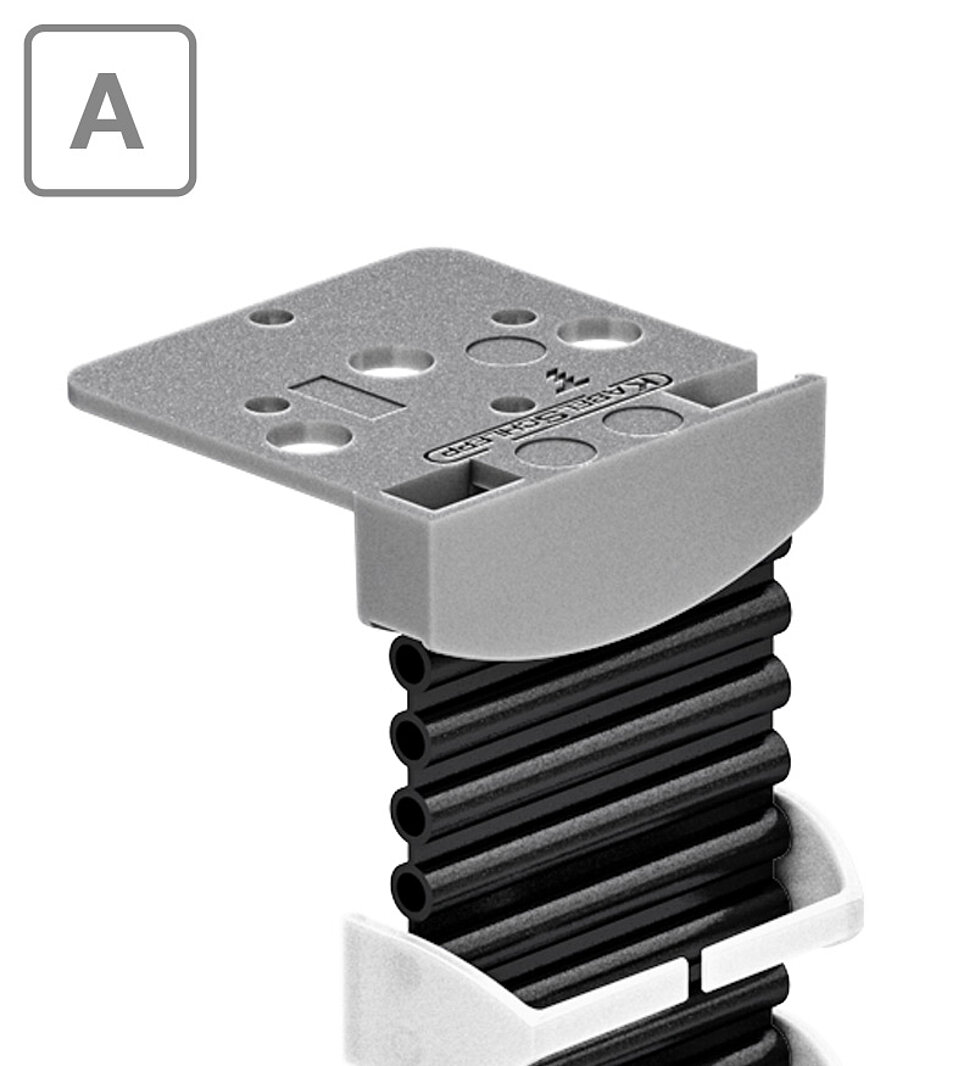

Combination options for end connectors

Depending on the design of your office furniture, different combination options are possible for the end connectors. They can be attached underneath table tops/cable conduits, to round or square table legs or to the floor.

Combination options for tables without height adjustment

Calculating the cable carrier length

Cable carrier length LK

LK = HZ – 31
[rounded up to n x 8]
nK =(LK – 64) / 24
[rounded up]
l2 = LK – (nK – 1) x 24 – 44

Combination options for tables with height adjustment

Calculating the cable carrier length

Cable carrier length LK

LK = nK x 24 + 40
nK =(HZ + 56) / 24
[rounded up]

Combination options for tables with height adjustment

Calculating the cable carrier length

Cable carrier length LK

LK = nK x 24 + 40
nK =(HZ + 56) / 24
[rounded up]

Combination options for tables with height adjustment

Calculating the cable carrier length

Cable carrier length LK

LK = nK x 24 + 40
nK =(HZ + 56) / 24
[rounded up]

Fixing variant


Screw: 4 mm
Tightening torque: max. 2.5 Nm		Adhesive disc
Mat. no. 75949

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Adhesive disc
Mat. no. 75949

Order

Standard sets for height-adjustable tables (standing/seated work stations) up to 740 mm lifting heightColorOrder no. Set

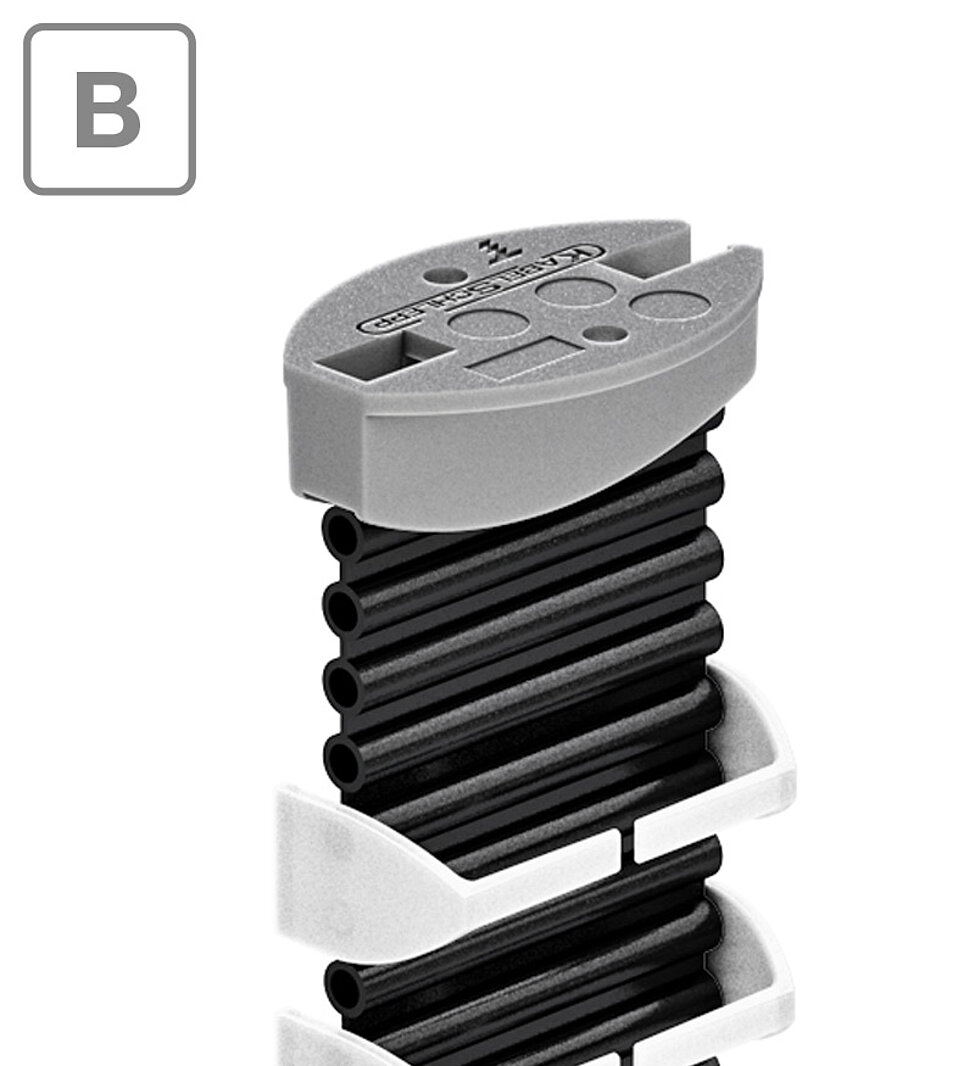

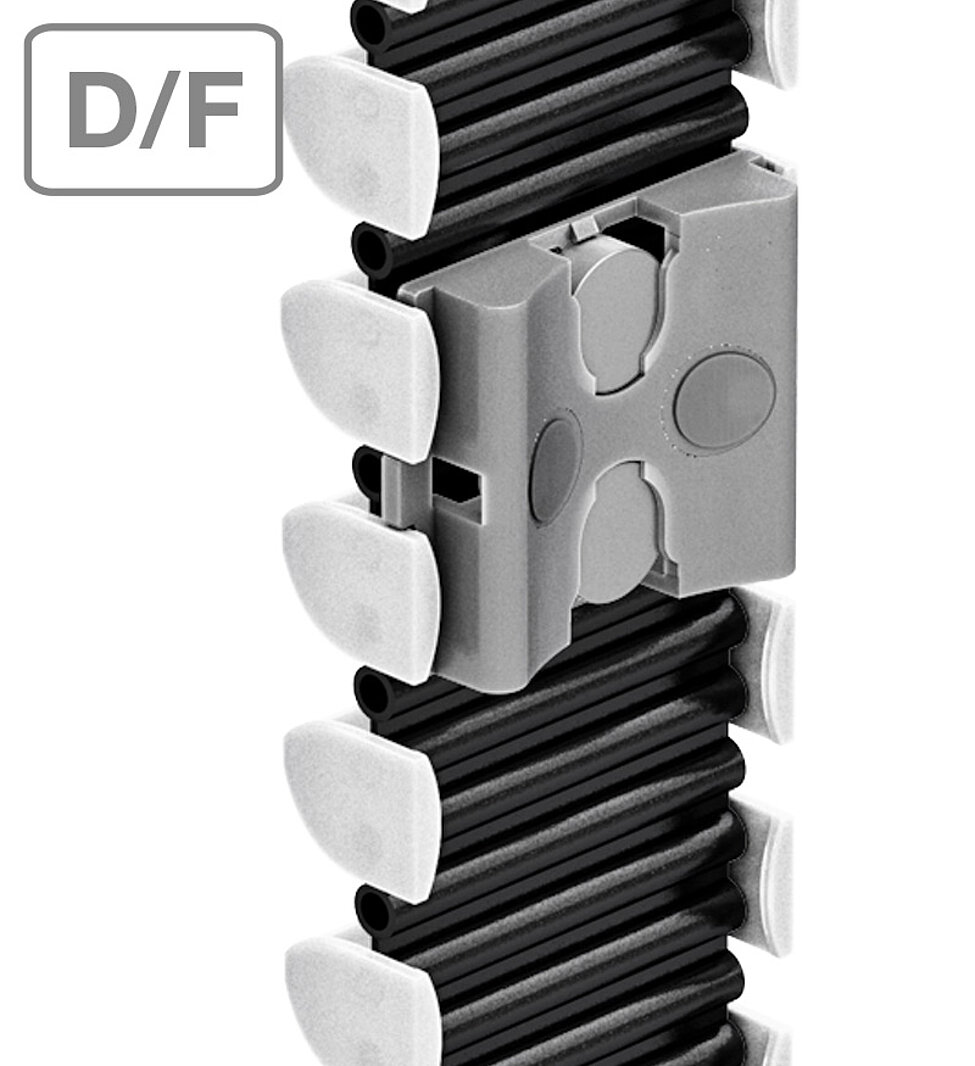

Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)



Black

75905
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)



White

75907
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)



Silver-gray

75906
