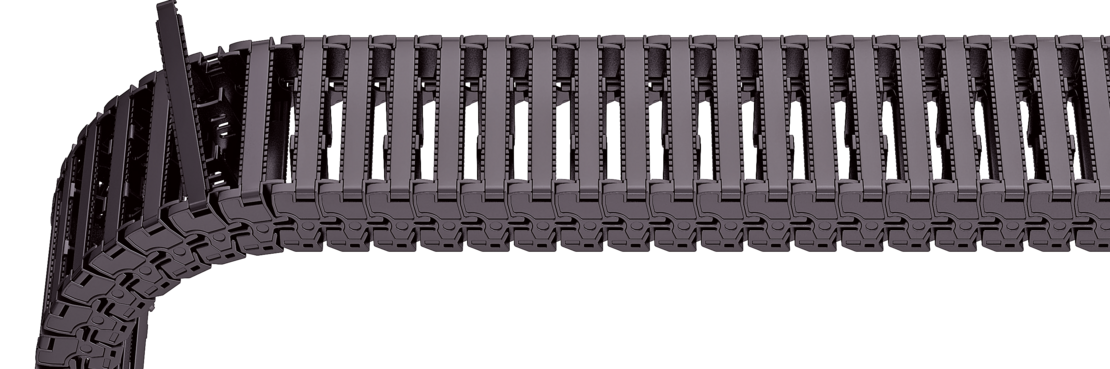

TKR0200.030

Stay variant 030 – with externally opening and detachable crossbars

Properties

Low-vibration plastic frame with particularly long service life thanks to molded chain links.
Swivable and detachable on one side in any position.
Outside: Swivable and detachable
Inside: detachable

Stay arrangement on each chain link (VS: fully-stayed)

B_i 40 – 120 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t for odd number of chain links

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	q_k [kg/m]
20	28	37	B_i + 16	0.60 – 1.00

B_i [mm]
40	50	60	80	100	120

KR [mm]
55	75	95	150

Order example

TKR0200

Type

B_i [mm]

030

Stay variant

KR [mm]

800

L_k [mm]

Stay arrangement

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (Version A).

Fixable dividers are available for applications with lateral accelerations and for applications lying on the side.
The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	4	8	6	–	–
B	A	8	6	4	–

B_i [mm]

a_{T min} [mm]

100

120

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	4	8	6	–	2
B	A	8	6	4	2

B_i [mm]

a_{T min} [mm]

100

120

Order example

TS1

Divider system

Version

n_T

VD0

VD1

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [n_T].

If using divider systems with height separation (TS1), please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

UMB end connectors UMB – plastic

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom or face on.

Recommended tightening torque:
0,6 Nm for screws M4

TKR0200 UMB end connectors UMB – plastic

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.
