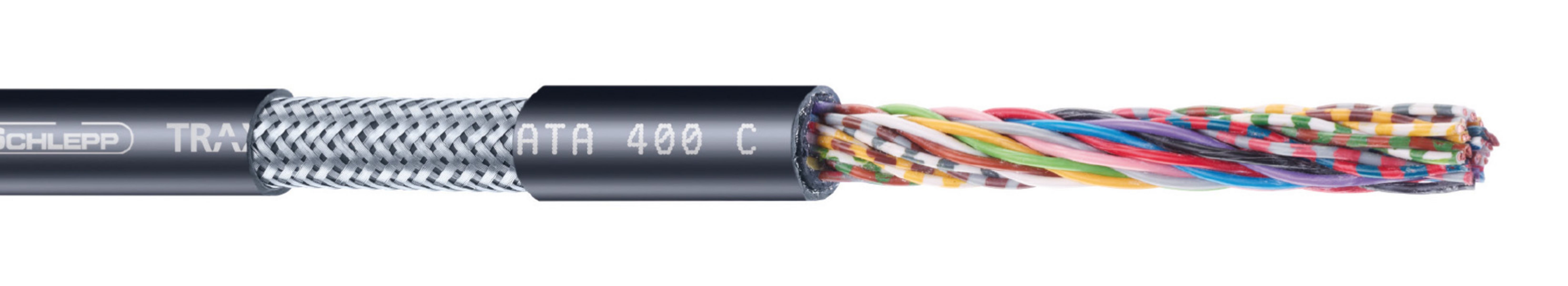

TRAXLINE® DATA 400 C

Shielded continuous bending hi-flex PVC control cables

General information

Communication between transmitter and receiver
Transmission of information
Overall-shield covers from electric or magnetic fields
Outer jacket pressure extruded and high abrasion resistant
Inner jacket valley-sealed extruded

Norms and standards

Oil-resistant
UV-resistant
CFC-free
REACH/ROHS II
Flame retardant

Up to4 Millionmotion cycles!

Up to50 mtravel length!

Design

Conductor:

Class 6

Core insulation:

PP/9Y

Core identification:

Color coded as per DIN 47100

Inner jacket material:

PVC

Shield:

Shielded

Outer jacket color:

Black

Outer jacket material:

PVC

Technical Data

Temperature range while moved:

-5 °C up to 80 °C
(-5 °C up to 80 °C UL)

Minimum bend radius while moved:

KR_min = 7.5 x ∅

V_max unsupported:

5 m/s

V_max gliding:

5 m/s

A_max unsupported:

50 m/s²

A_max gliding:

50 m/s²

Insulation resistance:

> 30 MΩ x km

Rated voltage:

according to VDE 0.30/0.50 kV
according to UL 0.3 kV

Type selection

Core number x Cross-section	Part no.	max. ∅ mm	Cable weight kg/m	Copper index kg/m	Datasheet
(4x0.25²)	48623	6.9	0.062	0.029	View
(8x0.25²)	48627	8.4	0.093	0.056	View
(25x0.25²)	48638	12.7	0.212	0.134	View
(4x0.34²)	48647	7.3	0.071	0.027	View
(5x0.34²)	48648	7.7	0.079	0.03	View
(7x0.34²)	48649	8.5	0.099	0.04	View

Additional cable types upon request
