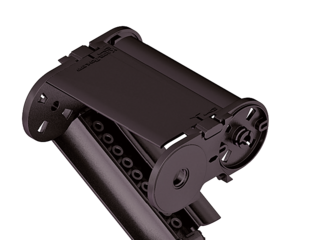

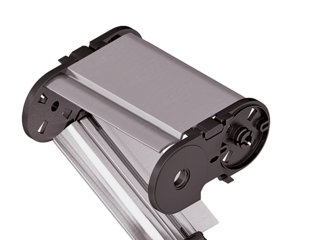

Cover with hinge in the inner radius

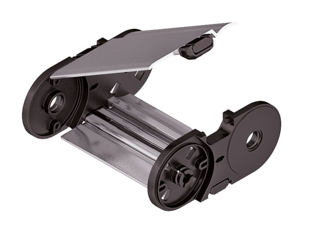

Cover with hinge in the outer radius

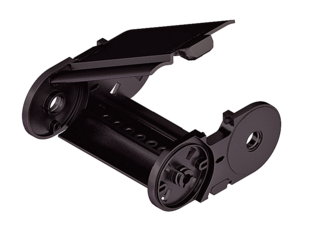

Cover with hinge in the inner radius
Cover with hinge in the outer radius
KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
75 | 189 | 214 | 331 | 142 |
100 | 239 | 264 | 410 | 167 |
130 | 299 | 324 | 504 | 197 |
160 | 359 | 384 | 598 | 227 |
200 | 439 | 464 | 724 | 267 |
250 | 539 | 564 | 881 | 317 |
300 | 639 | 664 | 1038 | 367 |
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.7 kg/m. For other inner widths, the maximum additional load changes.
