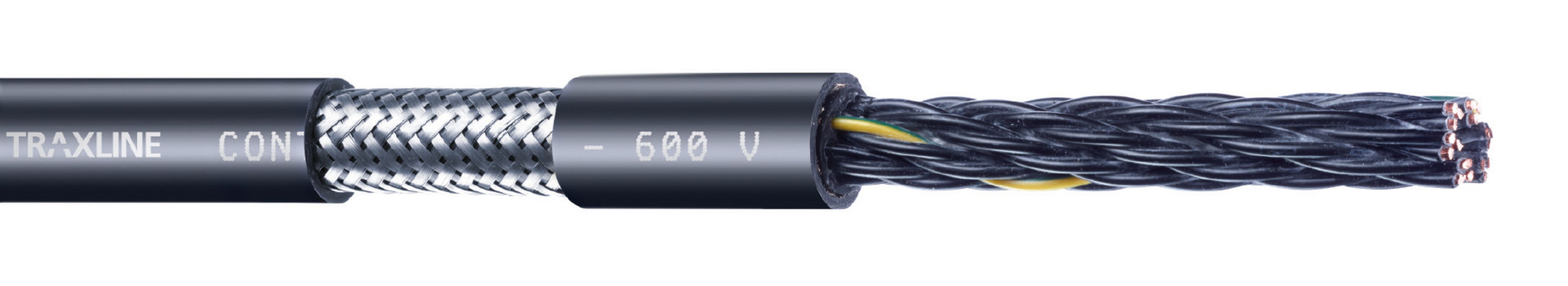

TRAXLINE® CONTROL 700 C 600 V

Shielded continuous bending hi-flex PUR control cables

General information

Communication between transmitter and receiver
Logical state of 0 and 1 control
Signal for turning on and off/start and stop
Overall-shield covers from electric or magnetic fields
Outer jacket pressure extruded and high abrasion resistant
Inner jacket valley-sealed extruded

Norms and standards

Oil-resistant
UV-resistant
Petroleum resistant
Halogene free
CFC-free
REACH/ROHS II
Flame retardant

Up to7 Millionmotion cycles!

Up to500 mtravel length!

Design

Conductor:

Class 6

Core insulation:

PP/9Y

Core identification:

Black, coded with white numbers, 1 x ye/gn

Inner jacket material:

TPE

Shield:

Shielded

Outer jacket color:

Black

Outer jacket material:

PUR

Technical Data

Temperature range while moved:

-35 °C up to 90 °C
(-35 °C up to 80 °C UL)

Minimum bend radius while moved:

KR_min = 7.5 x ∅

V_max unsupported:

20 m/s

V_max gliding:

5 m/s

A_max unsupported:

50 m/s²

A_max gliding:

50 m/s²

Insulation resistance:

> 30 MΩ x km

Rated voltage:

according to VDE 0.30/0.50 kV
according to UL 0.6 kV

Type selection

Core number x Cross-section	Part no.	max. ∅ mm	Cable weight kg/m	Copper index kg/m	Datasheet
(3G0.5²)	45701	7.9	0.081	0.036	View
(4G0.5²)	45702	8.4	0.09	0.042	View
(5G0.5²)	45703	8.9	0.103	0.048	View
(7G0.5²)	45705	10	0.13	0.064	View
(12G0.5²)	45709	12.7	0.201	0.109	View
(18G0.5²)	45712	15.1	0.268	0.167	View
(25G0.5²)	45715	17.2	0.36	0.212	View
(3G0.75²)	45721	8.4	0.082	0.048	View
(4G0.75²)	45722	9	0.109	0.055	View
(5G0.75²)	45723	9.6	0.126	0.066	View
(7G0.75²)	45725	11	0.158	0.087	View
(12G0.75²)	45729	14.3	0.256	0.147	View
(18G0.75²)	45732	16.6	0.348	0.222	View
(25G0.75²)	45735	19.7	0.491	0.293	View
(3G1²)	45741	8.8	0.104	0.059	View
(4G1²)	45742	9.4	0.123	0.07	View
(5G1²)	45743	10	0.139	0.084	View
(7G1²)	45745	11.6	0.183	0.106	View
(12G1²)	45749	15.1	0.297	0.174	View
(18G1²)	45752	18.3	0.429	0.24	View
(25G1²)	45755	20.6	0.55	0.332	View
(36G1²)	45757	25.3	0.803	0.346	View
(49G1²)	45759	29.9	1.114	0.471	View

Additional cable types upon request
