UA1555.030

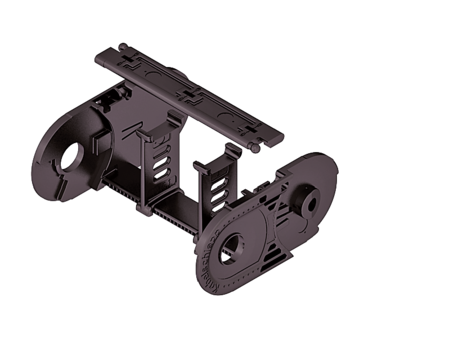

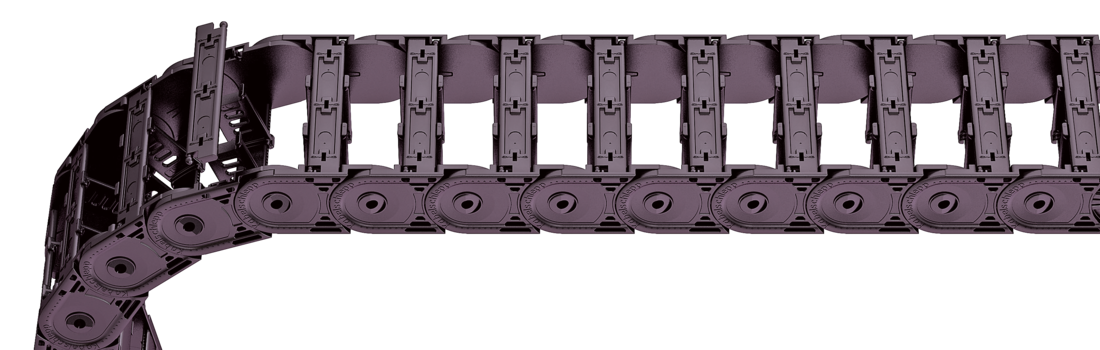

Stay variant 030 – with outside opening and detachable crossbars

Vlastnosti

Weight-optimised plastic frame with particularly high torsional rigidity.
Swivable and detachable left or right in any position.
Outside: openable and detachable.

Stay arrangement on each chain link (VS: fully-stayed)

B_i von 50 – 150 mm

Všetky piktogramy

Rozmery

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_k [mm]	B_EF [mm]	q_k [kg/m]
55,5	38	50	53	B_i + 18	B_i + 22	1,13 – 1,51

B_i [mm]
50	75	100	125	150

KR [mm]
63	80	100	125	160	200

Príklad objednania

UA1555

Typový rad

030

Konštrukcia mostíka

125

B_i [mm]

160

KR [mm]

1887

L_k [mm]

Usporiadanie mostíka

Pri posuvnom prevedení využite našu technickú podporu: info@kabelschlepp.sk

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available.
The locking cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	5	10	7,5	–	–
B	5	10	7,5	2,5	–

Number of dividers for design 020 depending on B_i
Version B: not for design 020

Divider system TS1

with continuous height separation^*

Verzia	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	5	20	10	7,5	–	2
B	5	20,5	10	7,5	2,5	2

^* not for design 020

Divider system TS3

with height separation consisting of plastic section subdivisions

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	5	15	10	2

^* not for design 020

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

a_x (vzdialenosť stredov deliacich priečok) [mm]
a_c (užitočná šírka vnútornej komory) [mm]
15 10	20 15	25 20	30 25	35 30	40 35	45 40	55 50	65 60	75 70

Príklad objednania

TS3

Systém mriežok

Verzia

n_T

Komora

a_x

VR1

VR3

výškové rozdelenie

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

Pripojovacie prvky

Universal end connectors UMB – plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from above, from below or on the face side.

Recommended tightening torque:
5 Nm for screws M5 - 8.8

B_i [mm]	n_z
50	2 x 3
75	2 x 5
90	2 x 6
100	2 x 7
125	2 x 9
150	2 x 11

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

U – universal mounting bracket

Príklad objednania

UMB

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

pripojeniesprvok

UMB

pripojeniebod

Spôsob pripojenia

We recommend the use of strain reliefs at the driver and fixed point.

Single-part end connectors short – plastic

The plastic end connectors can be connected from above or below. The connection type can be changed by altering the position of the end connector.

Recommended tightening torque:
6 Nm for screws M6 - 8.8

B_i [mm]	n_z
50	2 x 4
75	2 x 6
100	2 x 8
125	2 x 10
150	2 x 12

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Príklad objednania

End connector

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

pripojeniesprvok

End connector

pripojeniebod

Spôsob pripojenia

Single-part end connectors long – plastic

The plastic end connectors can be connected from above or below and allow a 1: 1 replacement of the UNIFLEX 0555 in the connection area. The connection type can be changed by altering the position of the end connector.

Recommended tightening torque:
6 Nm for screws M6 - 8.8

B_i [mm]	n_z
50	2 x 4
75	2 x 6
100	2 x 8
125	2 x 10
150	2 x 12

Spôsob pripojenia

F – fixed point
M – driver

Pripojovacia plocha

A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Príklad objednania

End connector U0555

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

pripojeniesprvok

End connector U0555

pripojeniebod

Spôsob pripojenia
