FLATVEYOR

Cable management system solution for cleanroom applications

FLATVEYOR is a free-standing flat cable guiding system that makes full use of our cable carrier technology and experience.

From pharmaceutical industry through medical technology to high-tech industry – all of them require an especially low-particle environment and “technical cleanliness” for their production processes. FLATVEYOR can support to reduce the downtime and improve your productivity.

Features

  • No friction occurs: Cleanroom IPA ISO Class 2 certified
    Solve particle issues generated from the friction of cable carriers and cables
  • Usable with long travel strokes
  • Easy to make a clean for maintenance
  • Minimizes bouncing
  • Quiet
  • Compact & lightweight
  • High speed operation
  • Line up cables with excellent flexibility and elasticity
High travel acceleration
Clean room suitable
Quiet running/low noise
Low weight

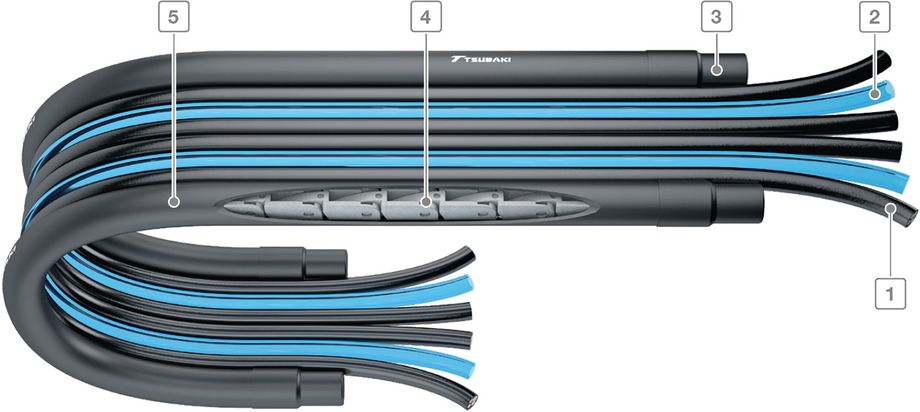

Design Structure

  1. Flexibility PVC cables from our lineup, based on your specifications
  2. Polyurethane Air tubes, based on your specifications
  3. Stopper for support members
  4. Support members on both sides for a free-standing guiding
  5. Covered tube for support members

Basic Specifications

FLATVEYOR Basic specifications
Maximum travel stroke (mm)
Support member bending radius R40: 1600
Support member bending radius R70: 2200
Support member bending radius R100: 2800
Support member bending radius R130: 2800
Maximum travel speed (m/sec)
2
Maximum acceleration (G)
4
Operating temperature range
-10 to 80 degree
Maximum outer diameter for cables/tubes (mm)
16
Estimated maximum width (mm)
150

FLATVEYOR is a free-standing flat cable system with internal support members to keep straight movement with high speed, high acceleration.

FLATVEYOR - free standing flat cable system

No hopping, No sagging, No falling over sideways!
The support members act as reliable guides which can be moved in one direction along the intended minimum bending radius, whereby the cables and tubes are guided reliably.
