LS/LSX1050

Pitch
105 mm

Inner heights
38 – 58 mm

Outer widths
100 – 600 mm

Bending radii
105 – 430 mm

All pictographs

Stay variants

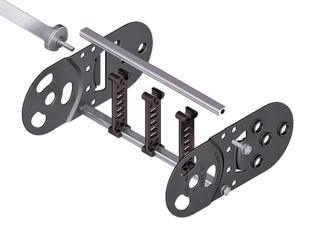

LS/LSX1050 RS 2

Frame stay narrow, bolted

Quick to open and close.
Aluminum profile bars for light to medium loads. Easy threaded connection.
Inside/outside: Threaded joint easy to release.

more details

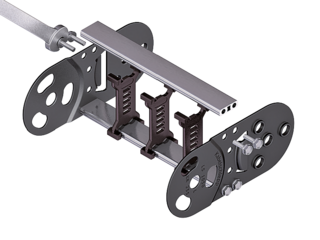

LS/LSX1050 RV

Frame stay, reinforced

Aluminum profile bars for medium to heavy loads and large cable carrier widths. Double threaded joint on both sides.
Inside/outside: Threaded joint easy to release.

more details

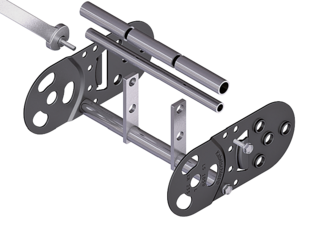

LS/LSX1050 RR

Frame stay, tube version

Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing.
Inside/outside: Screw connection detachable.

more details

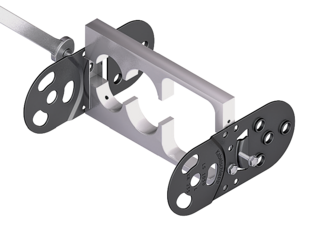

LS/LSX1050 LG

Frame stay, split

Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
Inside/outside: Threaded joint easy to release.

more details

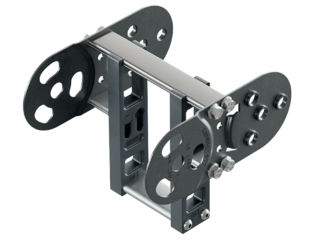

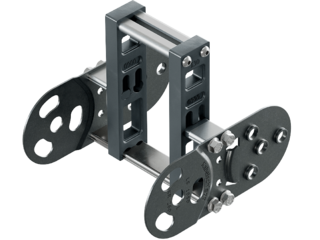

LS/LSX1050 RMA

Mounting frame stay

Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
Outside/inside: Screw-fixing easy to release.

more details

Installation dimensions

Unsupported arrangement

KR [mm]	H [mm]	L_B [mm]	U_B [mm]
105	330	540	250
125	370	603	270
155	430	697	300
195	510	823	340
260	640	1027	405
295	710	1137	440
325	770	1231	470
365	850	1357	510
430	980	1561	575

Installation height H_z: H + 10 mm/m

Load diagram for unsupported length depending on the additional load.

Intrinsic cable carrier weight q_k = 3.8 kg/m. For other inner widths, the maximum additional load changes.

Speed
up to 5 m/s

Acceleration
up to 10 m/s²

Travel length
up to 9.5 m

Additional load
up to 35 kg/m
