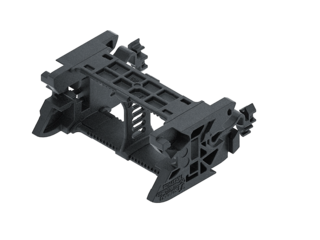

Frame screw-in stay
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.55 kg/m at Bi 50 mm. For other inner widths, the maximum additional load changes.
* For values > 20 m/s2, please contact us, we are happy to advise you!
