UA1250

Pitch
Pitch
25 mm
Inner height
Inner height
17.5 mm
Inner width
Inner widths
30 – 50 mm
Bending radius
Bending radii
28 – 100 mm

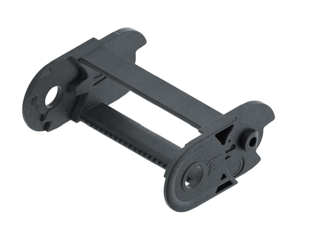

Stay variants

Installation dimensions

Unsupported arrangement

Unsupported arrangement
KR
[mm]
H
[mm]
Hz
[mm]
LB
[mm]
UB
[mm]
28
7910413865
38
9912416975
45
11313819182
60
14316823897
75
173198286112
100
223248364137

Load diagram for unsupported length depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 0.36 kg/m with Bi 50 mm. For other inner widths, the maximum additional load changes.

High travel velocity
Speed
up to 10 m/s
High travel acceleration
Acceleration
up to 50 m/s2
Travel length unsupported
Travel length
up to 1.6 m
High additional load
Additional load
up to 4 kg/m
Unsupported arrangement

Gliding arrangement

Gliding arrangement
High travel velocity
Speed
up to 3 m/s
High travel acceleration
Acceleration
up to 30 m/s2
Travel length gliding
Travel length
up to 60 m
High additional load
Additional load
up to 4 kg/m
Guide channel required

The gliding cable carrier must be guided in a channel. More information
