UA1775.040

Stay variant 040 – with inside opening and detachable crossbars

Properties

Weight-optimised plastic frame with particularly high torsional rigidity.
Swivable and detachable left or right in any position.
Inside: openable and detachable.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 100 – 400 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Design 040 is not suitable for a gliding arrangements without the use of gliding shoes.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_k [mm]	B_EF [mm]	q_k [kg/m]
77.5	56	77	81.6	B_i + 26	B_i + 30	2.831 – 4.224

B_i [mm]
100	125	150	175	200	225	250	275	300	325
350	400

KR [mm]
90	115	140	165	190	240	285	340

Order example

UA1775

Type

040

Stay variant

150

B_i [mm]

140

KR [mm]

3100

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: postmaster@metool.com

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available.
The locking cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	5	10	7	–	–
B	5	10	7	2.5	–

Number of dividers for design 020 depending on B_i

Divider system TS1

with continuous height separation*

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	5	10	7	–	2
B	5	10	7	2.5	2

^* not for design 020

Divider system TS3

with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

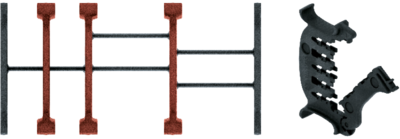

Divider version A

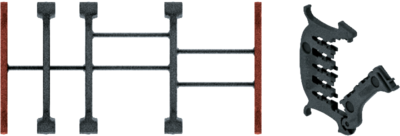

End divider

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	5/2^*	14	10	2

^* for End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
14 10	16 12	19 15	23 19	24 20	28 24	29 25	32 28	33 29	34 30	38 34	39 35
43 39	44 40	48 44	49 45	54 50	58 54	59 55	64 60	68 64	69 65	74 70	78 74
79 75	80 76	84 80	88 84	89 85	94 90	96 92	99 95	112 108

An additional central support is required when using plastic partitions with a_x > 49 mm.

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

Universal end connectors UMB – plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from above, from below or on the face side.

Recommended tightening torque:
27 Nm for screws M8

B_i [mm]	n_z
100	2 x 7
125	2 x 9
150	2 x 11
175	2 x 13

The end connectors are also available as an option with strain relief comb or with C-rail Art. no 3931 (1 on each side) for clamps. Please state when ordering.

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.
