UA1995.070

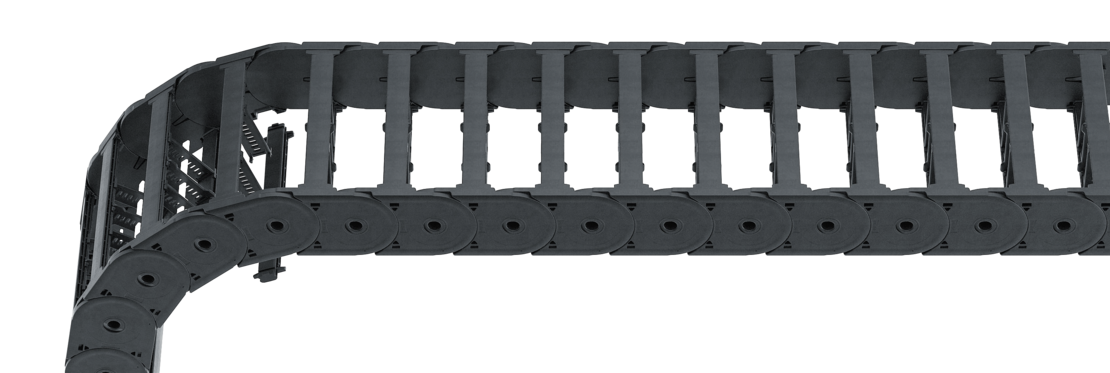

Stay variant 070 – with outside and inside detachable stays


Properties

  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside/inside: release by rotating 90°.
test
Stay arrangement on every chain link

Stay arrangement on each chain link (VS: fully-stayed)

Inner width
Bi 85 – 250 mm

Dimensions

Dimensions
Important information

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Important information

Design 070 is not suitable for a gliding arrangements without the use of gliding shoes.

Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
t
[mm]
hi
[mm]
hG
[mm]
hG'
[mm]
Bk
[mm]
BEF
[mm]
qk
[kg/m]
99.580110116.5Bi + 30Bi + 363.852 – 3.853
Bi
[mm]
85125138150180196225250
KR
[mm]
150210250300350400500
Order example
Order code

UA1995

070

150

210

3582

VS

Our technical support can provide help for gliding arrangements: postmaster@metool.com

Inner distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available.
The locking cams click into place in the locking grids in the stays (version B).

Divider system TS0

without height separation
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A101612
B1017.513.52.5

Number of dividers for design 020 depending on Bi

Divider system TS0

Divider system TS1

with continuous height separation*
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A1016122
B1017.513.52.52

* not for design 020

Divider system TS1

Divider system TS3

with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

Divider version A

End divider

Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A8/4*14102

Number of dividers for design 020 depending on Bi

* for End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Divider system TS3
Divider system TS3
ax (center distance of dividers) [mm]
ac (nominal width of inner chamber) [mm]
14
10
16
12
19
15
23
19
24
20
28
24
29
25
32
28
33
29
34
30
38
34
39
35
43
39
44
40
48
44
49
45
54
50
58
54
59
55
64
60
68
64
69
65
74
70
78
74
79
75
80
76
84
80
88
84
89
85
94
90
96
92
99
95
112
108

An additional central support is required when using plastic partitions with ax > 49 mm.

Order example
Order code

TS3

A

3

K1

K4

34

38

VR1

VR3

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

UA1995 End Connector UMB
UA1995 End Connector UMB
Important information

Recommended tightening torque:
27 Nm for screws M8

UA1995 End Connector UMB
Connection point

F – fixed point
M – driver

Connection type

– universal mounting bracket

Order example
Order code

UMB

F

U

UMB

M

U

End connector

UMB

UMB

Connection point

F

M

Connection type

U

U

Important information

We recommend the use of strain reliefs at the driver and fixed point.
