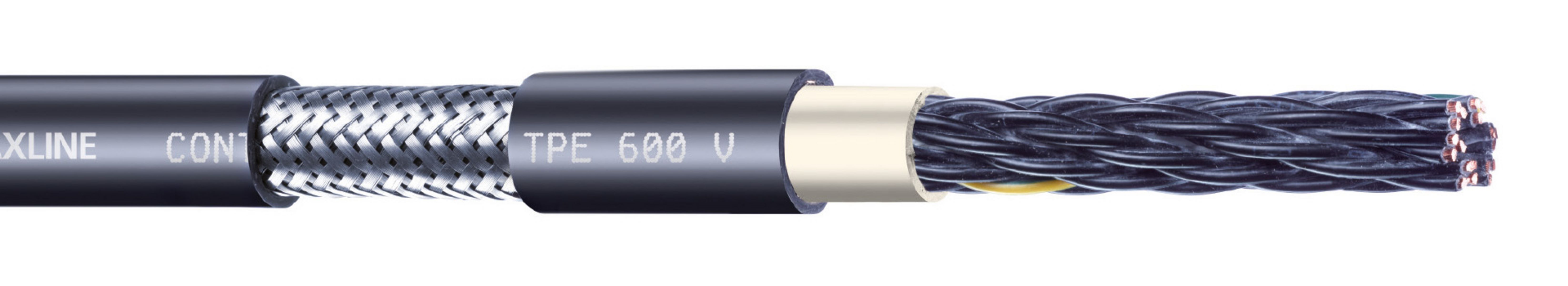

TRAXLINE® CONTROL 1000 C TPE 300/500 V

Shielded continuous bending hi-flex TPE control cables

General information

Communication between transmitter and receiver
Logical state of 0 and 1 control
Signal for turning on and off/start and stop
Overall-shield covers from electric or magnetic fields
Outer jacket pressure extruded and high abrasion resistant
Inner jacket valley-sealed extruded

Norms and standards

Oil-resistant
UV-resistant
Halogene free
CFC-free
REACH/ROHS II

Up to10 Millionmotion cycles!

Up to1000 mtravel length!

Design

Conductor:

Class 6

Core insulation:

PP/9Y

Core identification:

Black, coded with white numbers, 1 x ye/gn

Inner jacket material:

TPE

Shield:

Shielded

Outer jacket color:

Black

Outer jacket material:

TPE

Technical Data

Temperature range while moved:

-40 °C up to 90 °C

Minimum bend radius while moved:

KR_min = 5 x ∅

V_max unsupported:

20 m/s

V_max gliding:

5 m/s

A_max unsupported:

50 m/s²

A_max gliding:

50 m/s²

Insulation resistance:

> 30 MΩ x km

Rated voltage:

according to VDE 0.30/0.50 kV

Type selection

Core number x Cross-section	Part no.	max. ∅ mm	Cable weight kg/m	Copper index kg/m	Datasheet
(12G0.5²)	49709	12.5	0.209	0.109	View
(18G0.5²)	49712	14.5	0.274	0.167	View
(25G0.5²)	49715	16.6	0.364	0.212	View
(12G0.75²)	49729	13.5	0.242	0.147	View
(18G0.75²)	49732	15.9	0.328	0.222	View
(25G0.75²)	49735	19	0.482	0.293	View
(12G1²)	49749	14.3	0.281	0.174	View
(18G1²)	49752	17.8	0.496	0.24	View
(25G1²)	49755	20.8	0.585	0.332	View
(36G1²)	49757	25.4	0.851	0.485	View
(49G1²)	49759	30	1.136	0.66	View

Additional cable types upon request
