Floating Moving Device

Optimum transfer of cables

Floating Moving Device (TKFMD) – To compensate for lateral offset in cable carriers

A flexible driver connection is required to ensure guiding of the cable carrier without transverse forces in applications with increased lateral offset. The connection has to ensure a relative movement between the connection of the cable carrier system and the system driver.

  • Tolerance compensation:
    • Horizontal: min. +/- 30 mm, vertical: min. +/- 20 mm
    • Inaccuracies in channel alignment/manufacturing/assembly are compensated
  • Continued cable routing
    No threading or passing through of the tail lengths required
  • Wear
    • Wear reduced to a minimum
    • Roller-guided system in connection with all TSUBAKI KABELSCHLEPP guide channels
  • Material
    Stainless steel/aluminum, or painted to customer specifications
  • Easy installation
    The cable carrier system has two defined mounting assemblies for easy installation of cables and hoses
  • Cable routing
    The protected continued cable routing in the Floating Moving Device corresponds to the inner height of the cable carrier
  • Strain relief
    Easy access and assembly with LineFix clamps for strain relief
  • Standard connection dimensions
    • For horizontal and vertical connection including GO module (friction-optimized for low wear)
Relevant factors
  • Guiding without transverse forces:
    • protects the cable carrier
    • minimizes costs through reduced downtimes
    • reduces defects/malfunctions/damage
  • The compensation of the parallel error between the system and the cable carrier is ensured
  • Easy maintenance/disassembly, if necessary
  • Easy retrofitting on an opposite-arrangement system
  • Easy connection options
  • System reliability and availability

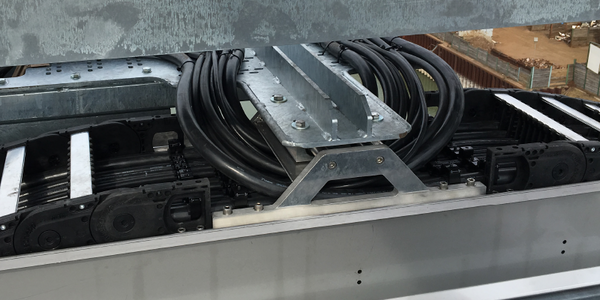

Floating moving device Decision criteria
Floating moving device One sided arrangement

Single-sided arrangement

Floating moving device Opposite arrangement

Opposite arrangement

Suitable for:
TypeInner width Bi
M0950 130 – 500
M1250 150 – 800
M1300 140 – 500
TKHD90 140 – 500

* Additional inner widths on request.


Matching with

Cables for cable carriers – TRAXLINE®

Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.


Ready-to-connect cable carrier systems – TOTALTRAX®

From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.



Reliable unrolling and optimum gliding for long travel lengths

to Support trays
to Guide channels

For optimum placement with dynamic use of cables

to Strain relief devices


Product Configurator
Product Configurator

Product Configurator

  • Efficient, quick and complete configuration ­ the result is your individual product with an excellent price-performance ratio
  • Product configurator OnlineEngineer + suitable CAD model from CADenas without having to exit the portal


  • Decrease your engineering times
  • Accelerate your design processes
  • Configure with original data directly from the manufacturer
  • Providing 3D component models in a variety of CAD formats


Cable Carriers – Overview of general abbreviations and pictographs

Technical information
Technical information

Technical information

Configuration guidelines:

  • Selecting a suitable cable carrier
  • Placement guidelines for cables and hoses
  • Installation variants


The latest TSUBAKI KABELSCHLEPP information material:
