|Type of Conveyor||Hinged belt conveyors||Scraper belt conveyors|
|SRF 063||SRF 100||SRF 150||KRF 063||KRF 100|
|Type of Chips||wool or long chips, tufts of chips||wool or long chips, tufts of chips||wool or long chips, tufts of chips||short, broken chips up to 50 mm||short, broken chips up to 50 mm|
|Length||1 – 60 m||1.5 – 100 m||1.5 – 100 m||1 – 60 m||1.5 – 100 m|
|Conveying volume||, guideline value 7.5 m3/h||, guideline value 15 m3/h||, guideline value 26 m3/h||, guideline value 1.3 m3/h||, guideline value 3.4 m3/h|
|1.2 – 10 m/min||2.2 – 12 m/min||3 – 12 m/min||1.2 – 10 m/min||2.2 – 12 m/min|
|Belt width||150 – 2100 mm||150 – 2100 mm||300 – 2100 mm||150 – 1000 mm||150 – 1000 mm|
Deviating specifications on request

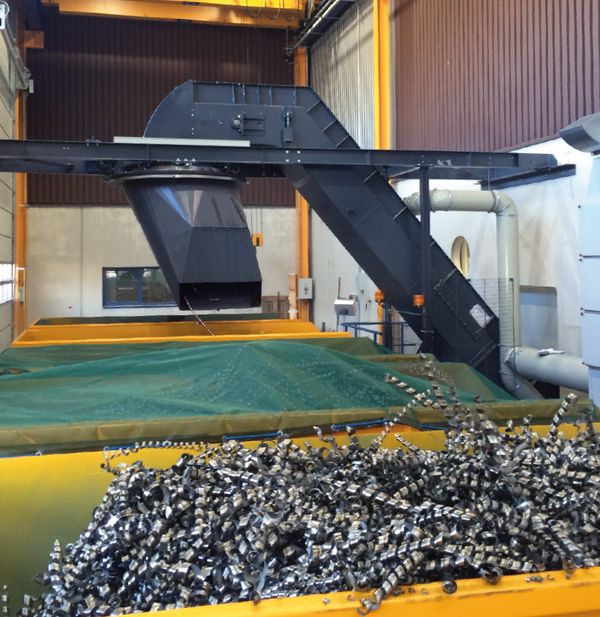

Central chip disposal and processing.

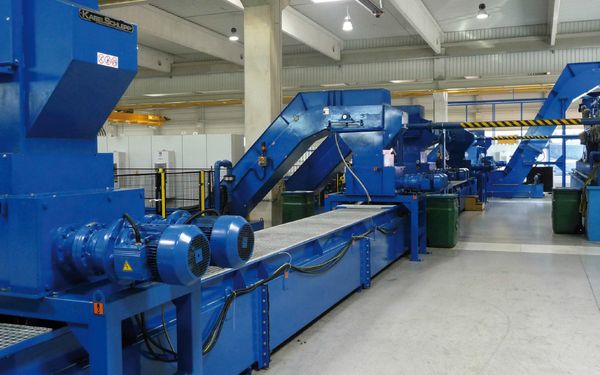

Chip separation and distribution on a peeling machine.

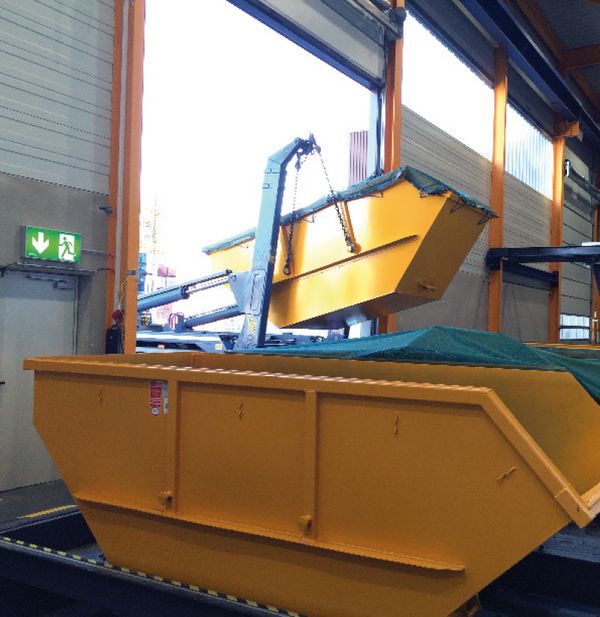

Container loading and removal.

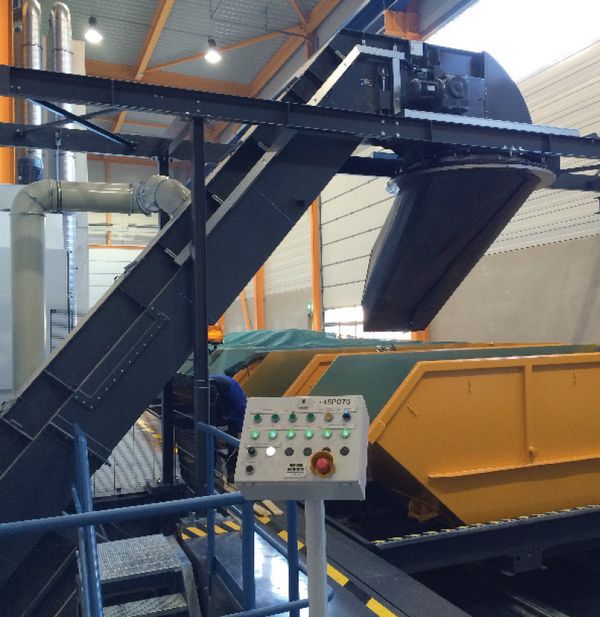

Manual or fully automated control of the filling.
Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.Accessories and system components
Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.
The experts at out our Service Center provide the support you need.Service and spare parts
