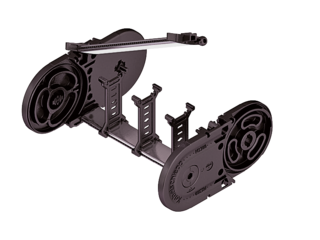

Frame stay solid with optional fixing profile

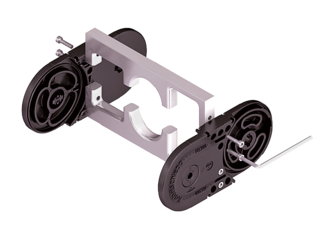

Frame stay solid with ball joint

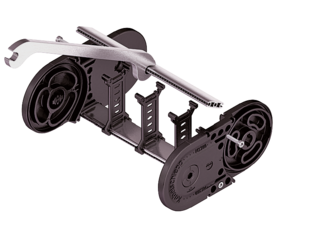

Hole stay, split version
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 8.0 kg/m. For other inner widths, the maximum additional load changes.
GO module with chain links optimized for gliding
The cable carrier is to be used gliding only without pre-tensioning!
The GO module mounted on the driver is a defined sequence of 4 different KR/RKR link plates.
Glide shoes have to be used for gliding applications.
