MT1250

Pitch
Pitch
125 mm
Inner height
Inner height
68.5 mm
Inner width
Inner widths
103 – 800 mm
Bending radius
Bending radii
220 – 500 mm

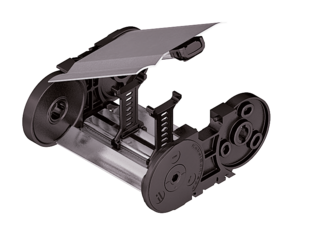

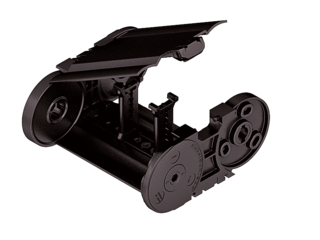

Stay variants

Installation dimensions

Unsupported arrangement

Unsupported arrangement
KR
[mm]
H
[mm]
Hz
[mm]
LB
[mm]
UB
[mm]
220*
536586942393
260
6166661067433
300
6967461193473
340
7768261319513
380
8569061444553
500
109611461821673

* not RMD

Load diagram for unsupported length depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 8.0 kg/m. For other inner widths, the maximum additional load changes.

High travel velocity
Speed
up to 10 m/s
High travel acceleration
Acceleration
up to 20 m/s2
Travel length unsupported
Travel length
up to 9.7 m
High additional load
Additional load
up to 65 kg/m
Unsupported arrangement

Gliding arrangement | GO module with chain links optimized for gliding

Gliding arrangement
KR
[mm]
H
[mm]
GO-Modul RKR
[mm]
LB
[mm]
UB
[mm]
220*288 500 22501015
260288 500 25001095
300288 500 27501177
340288 500 31251318
380288 500 33751403
500288 500 43751770

* not RMD

High travel velocity
Speed
up to 8 m/s
High travel acceleration
Acceleration
up to 20 m/s2
Travel length gliding
Travel length
up to 270 m
High additional load
Additional load
up to 65 kg/m
Guide channel required

The gliding cable carrier must be guided in a channel. More information

The GO module mounted on the driver is a defined sequence of 4 different KR/RKR link plates.

Glide shoes have to be used for gliding applications.
