P0400 GS02 (double-sided)

Stay variant 010 – with lamellae in the outer or outer and inner radius

Properties

Belt with clip-on side parts.
Double-sided: for pressing in.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 50 mm

All pictographs

Dimensions

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_k [mm]	q_k [kg/m]
40	21.5	53.5	50	B_i + 5	0.336

Standard colors

P0400 GS.010 Color variants Silvergrey (1)

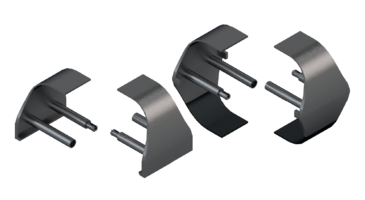

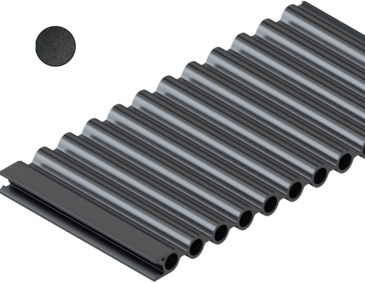

Black (RAL 9005)
P0400GS01 Mat. no. 75972*
P0400GS02 Mat. no. 75981*

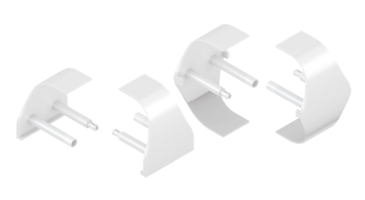

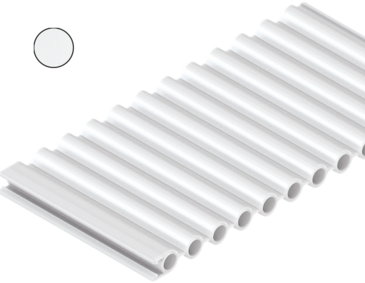

White (RAL 9010)
P0400GS01 Mat. no. 75980*
P0400GS02 Mat. no. 75989*

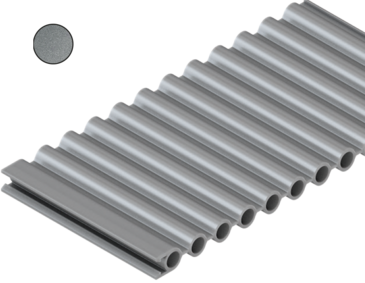

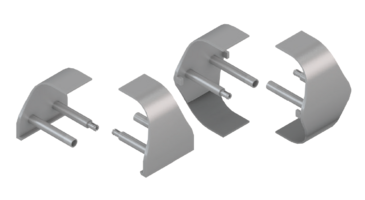

P0400 GS.010 Color variants Silvergrey (2)

Silver-grey (RAL 9023)
P0400GS01 Mat. no. 75976*
P0400GS02 Mat. no. 75985*

* Length: 960 mm

For bulk buyers, the color variants of the belt, the side parts and the connections can be individually
combined on request. Colored items may have color differences.

End connectors

Combination options for end connectors

Depending on the design of your office furniture, different combination options are possible for the end connectors. They can be attached underneath table tops/cable conduits, to round or square table legs or to the floor.

Combination options for tables without height adjustment

P0400 GS Connection element for non-hight adjustable desk

Calculating the cable carrier length

Cable carrier length L_K

L_K= H_Z – 31
[rounded up to n x 8]
n_K= (L_K – 104) / 40
[rounded up]
l₂= L_K – (n_K – 1) x 40 – 72

All connections and cable carriers can be combined with each other and are available in the colour variants silver-grey, black and white.

End connectors

Connection A – angled for table top

Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.

Color variants

Black
Mat. no. 75739*
White
Mat. no. 75884*
Silver-gray
Mat. no. 75876*

*SU = 50 pieces

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Adhesive disc
Mat. no. 75949

Connection B – oval for table top

Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.

Color variants

Black
Mat. no. 75740*
White
Mat. no. 75885*
Silver-gray
Mat. no. 75877*

*SU = 50 pieces

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Adhesive disc
Mat. no. 75949

Also available as magnetic version (Connector N)

Connection G – floor connection

Floor connection for a clean transition of the cable routing to the floor. Individual colors and designs on request.

Color variants

Black
Mat. no. 75745*
White
Mat. no. 75890*
Silver-gray
Mat. no. 75882*

*SU = 50 pieces

Connection N – oval for table top

Table connection for installing the cable routing underneath the table top or on a cable conduit via integrated magnets.

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

Black
Mat. no. 75937*
White
Mat. no. 75938*
Silver-gray
Mat. no. 75939*

*SU = 50 pieces

Magnets
Magnetic retention force: max. 35 N

Order

Standard sets for non-height adjustable tables (standard work stations)	Color	Order no. Set
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	black	75960
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	white	75962
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	silver-gray	75961

Standard sets for attaching a power strip	Color	Order no. Set
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	Black	75835
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	White	75837
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	Silver-gray	75836

Standard sets for cable routing P0400GS02	Color	Order no. Set
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm.	White	75989
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm.	Silver-gray	75985
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm.	Black	75981
