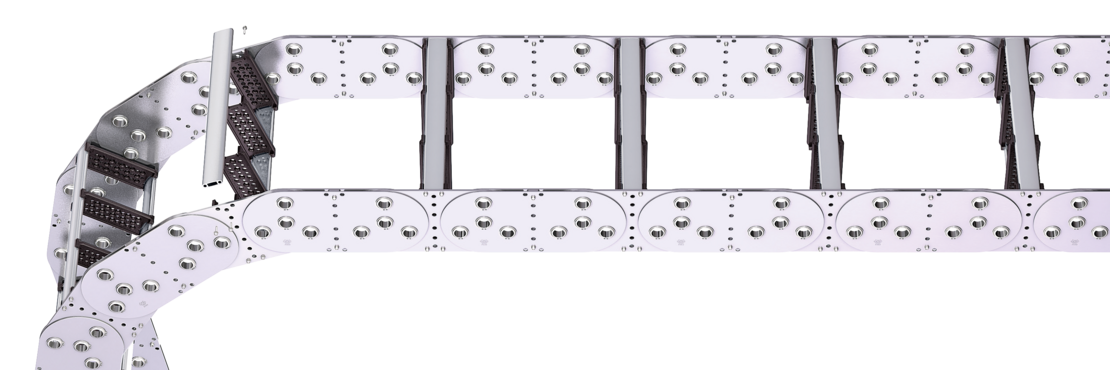

S/SX2500 RM

Aluminum stay RM – frame stay, solid

Properties

Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joint on both sides “Heavy Duty”.
Available customized in 1 mm grid.
Inside/outside: Threaded joint easy to release.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 250 – 1200 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t for odd number of chain links

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	q_k [kg/m]
250	183	220	175 – 1125	218 – 1168	B_St + 32	38.68 – 44.58

^* in 1 mm width sections

KR [mm]
365	445	600	760	920	1075	1235	1395

Order example

S2500

Type

806

B_St [mm]

Stay variant

760

KR [mm]

Material

9250

L_k [mm]

Stay arrangement

Inner distribution

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2^nd chain link (HS).
As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	19	25	13	–

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	19	25	13	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	40	46	34	2

Standard height separation with tube Ø 16 mm. The dividers can be moved in the cross section.

Order example

TS2

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [n_T]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS2), please also state the positions (e.g. VD23) viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside

Order example

Steel

End connector

Connection point

Connection type

End connector

Steel

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.
