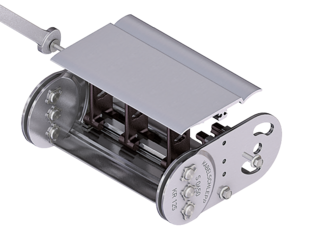

Aluminum cover system
KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
115 | 305 | 621 | 270 |
125 | 325 | 653 | 280 |
135 | 345 | 684 | 290 |
145 | 365 | 716 | 300 |
155 | 385 | 747 | 310 |
175 | 425 | 810 | 330 |
200 | 475 | 888 | 355 |
250 | 575 | 1045 | 405 |
400 | 875 | 1516 | 555 |
Load diagram for unsupported length depending on the additional load.
Intrinsic cable carrier weight qk = 4.5 kg/m. For other inner widths, the maximum additional load changes.
For cable carriers with a aluminum cover system, a higher intrinsic cable carrier weight is to note.
The gliding cable carrier must be guided in a channel. More information
We recommend the use of glide shoes for gliding applications.
