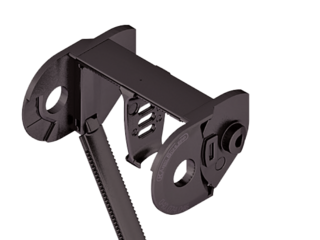

Frame with inside opening crossbar
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.56 kg/m. The maximum additional load changes with deviating inner widths.
Glide shoes must be used for gliding applications.
Only design 020 can be used for a gliding arrangement.
