Central chip disposal applications

Conveyor systems for central residue management.

Are you planning a central disposal solution within your production facility? We have already realized a large number of individual solutions. Our focus is to find the best possible and individual solution together with you.

Selection by application

Guideline values for preselection
Type of ConveyorHinged belt conveyorsScraper belt conveyors
SRF 063SRF 100SRF 150KRF 063KRF 100
Type of Chips wool or long chips, tufts of chips wool or long chips, tufts of chips wool or long chips, tufts of chips short, broken chips up to 50 mm short, broken chips up to 50 mm
Length 1 – 60 m 1.5 – 100 m 1.5 – 100 m 1 – 60 m 1.5 – 100 m
Conveying volume 7.50 m3/h,
guideline value 15.00 m3/h,
guideline value 26.00 m3/h,
guideline value 1.30 m3/h,
guideline value 3.40 m3/h,
guideline value

Conveyor speed

1.2 – 10 m/min 2.2 – 12 m/min 3 – 12 m/min 1.2 – 10 m/min 2.2 – 12 m/min
Belt width 150 – 2100 mm 150 – 2100 mm 300 – 2100 mm 150 – 1000 mm 150 – 1000 mm

Deviating specifications on request

Sample applications

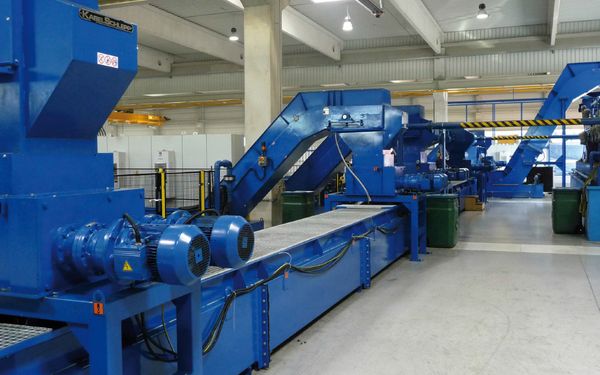

Central chip disposal applications Sample 1

Central chip disposal and processing.

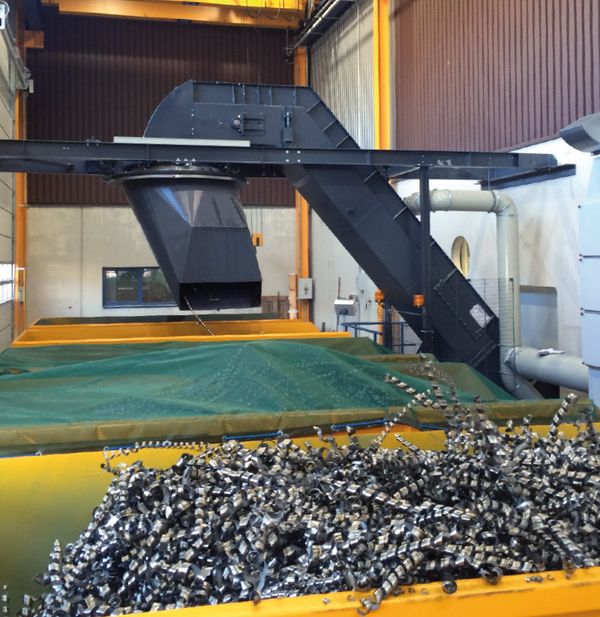

Central chip disposal applications Sample 2

Chip separation and distribution on a peeling machine.

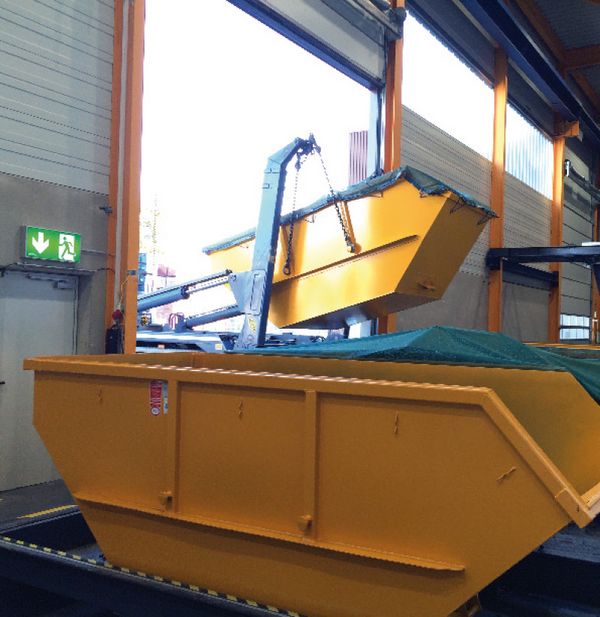

Central chip disposal applications Sample 3

Container loading and removal.

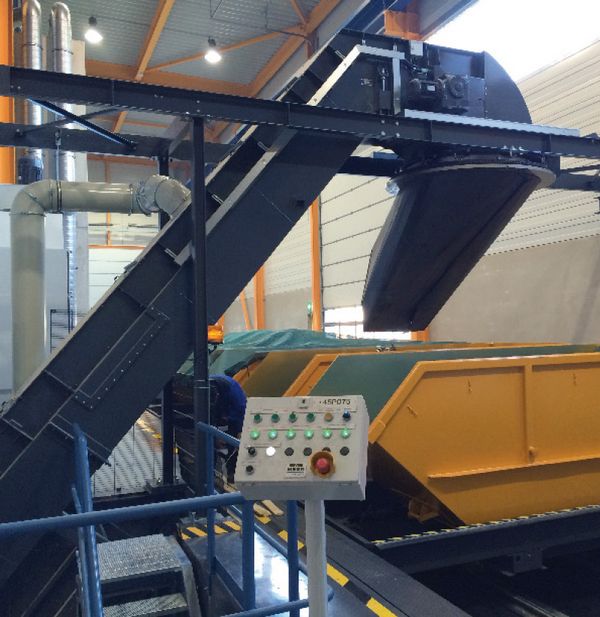

Central chip disposal applications Sample 4

Manual or fully automated control of the filling.

Start your inquiry

Please use the contact form for any inquiries you might have.

Matching with

Accessories and system components

Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.

Accessories and system components

Service and spare parts

Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.

  • Repair Service
  • Predictive Maintenance
  • Turn Key Solutions

The experts at out our Service Center provide the support you need.
