LS/LSX1050 RV

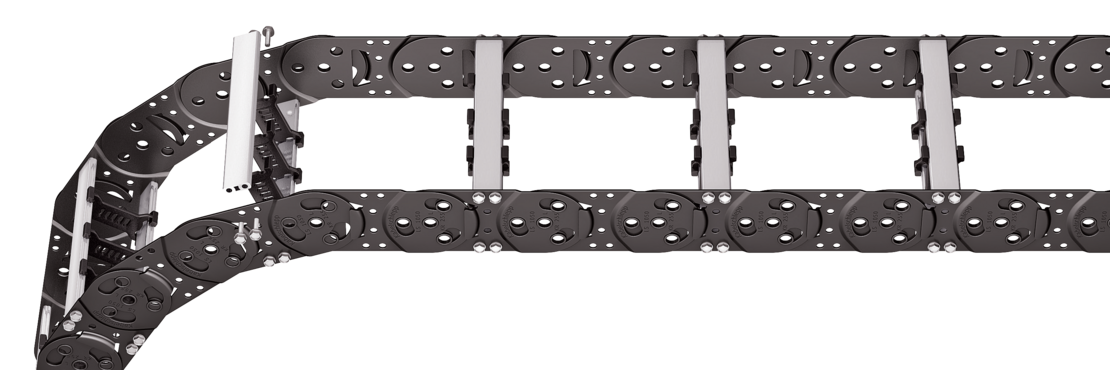

Aluminum stay RV – frame stay reinforced

Properties

Aluminum profile bars for medium to heavy loads and large cable carrier widths. Double threaded joint on both sides.
Available customized in 1 mm grid.
Inside/outside: Threaded joint easy to release.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 100 – 600 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	q_k [kg/m]
105	58	80	84 – 584	84 – 584	B_St + 16	4.00 – 5.95

^* in 1 mm width sections

KR [mm]
105	125	155	195	260	295	325	365	430

Order example

LS1050

Type

180

B_St [mm]

Stay variant

125

KR [mm]

Material

2415

L_k [mm]

Stay arrangement

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	7	14	10	–

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	7	25	14	10	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	8	21	15	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 4 mm).

Divider system TS3

with height separation made of plastic partitions

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4	16 / 42^*	8	2

^* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions with 1 mm increments with a_x > 42 mm are also available.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using plastic partitions with a_x > 112 mm, we recommend an additional center support with a twin divider (S_T = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside

Connection surface

I – connection surface inside
A – connection surface outside

Order example

Steel

End connector

Connection point

Connection type

Connection surface

End connector

Steel

Connection point

Connection type

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
