P0400 GS01 (one-sided)

Stay variant 010 – with lamellae in the outer radius


Properties

  • Belt with clip-on side parts.
  • One-sided: for pressing in.
test
Stay arrangement on every chain link

Stay arrangement on each chain link (VS: fully-stayed)

Inner width
Bi 50 mm

Dimensions

Dimensions
t
[mm]
hi
[mm]
hG
[mm]
Bi
[mm]
Bk
[mm]
qk
[kg/m]
4021.53450Bi + 50.286
Standard colors
P0400 GS.010 Color variants Black (1)
P0400 GS.010 Color variants White (1)
P0400 GS.010 Color variants Silvergrey (1)
P0400 GS.010 Color variants Black (2)

Black (RAL 9005)
P0400GS01 Mat. no. 75972*
P0400GS02 Mat. no. 75981*

P0400 GS.010 Color variants White (2)

White (RAL 9010)
P0400GS01 Mat. no. 75980*
P0400GS02 Mat. no. 75989*

P0400 GS.010 Color variants Silvergrey (2)

Silver-grey (RAL 9023)
P0400GS01 Mat. no. 75976*
P0400GS02 Mat. no. 75985*

* Length: 960 mm

Important information

For bulk buyers, the color variants of the belt, the side parts and the connections can be individually
combined on request. Colored items may have color differences.

End connectors

Combination options for end connectors

Depending on the design of your office furniture, different combination options are possible for the end connectors. They can be attached underneath table tops/cable conduits, to round or square table legs or to the floor.

Combination options for tables without height adjustment
P0400 GS Connection element for non-hight adjustable desk
Calculating the cable carrier length
Cable carrier length LK
LK = HZ – 31
[rounded up to n x 8]
nK = (LK – 104) / 40
[rounded up]
l2 = LK – (nK – 1) x 40 – 72
Combination options for tables with height adjustment
P0400 GS Connection element for hight adjustable desk C-F
Calculating the cable carrier length
Cable carrier length LK
LK = nK x 40 + 56
nK = (HZ + 40) / 40
[rounded up]
Combination options for tables with height adjustment
P0400 GS Connection element for hight adjustable desk M
Calculating the cable carrier length
Cable carrier length LK
LK = nK x 40 + 56
nK = (HZ + 40) / 40
[rounded up]
Combination options for tables with height adjustment
P0400 GS Connection element for hight adjustable desk I-L
Calculating the cable carrier length
Cable carrier length LK
LK = nK x 40 + 56
nK = (HZ + 40) / 40
[rounded up]
P0400 GS Connection element A
P0400 GS Connection element B
P0400 GS Connection element C/E
P0400 GS Connection element D/F
P0400 GS Connection element G
P0400 GS Connection element H
P0400 GS Connection element I/J
P0400 GS Connection element K/L
P0400 GS Connection element M
P0400 GS Connection element N
Important information

All connections and cable carriers can be combined with each other and are available in the colour variants silver-grey, black and white.

End connectors

P0400 GS End connectors - Connection A
P0400 GS End connectors - Connection A
P0400 GS End connectors - Connection A

Color variants

  • Black
    Mat. no. 75739*
  • White
    Mat. no. 75884*
  • Silver-gray
    Mat. no. 75876*

*SU = 50 pieces

P0400 GS End connectors - Connection A

Screw: 4 mm
Tightening torque: max. 2.5 Nm

P0400 GS End connectors - Connection A

Adhesive disc
Mat. no. 75949

P0400 GS End connectors - Connection B
P0400 GS End connectors - Connection B
P0400 GS End connectors - Connection B

Color variants

  • Black
    Mat. no. 75740*
  • White
    Mat. no. 75885*
  • Silver-gray
    Mat. no. 75877*

*SU = 50 pieces

P0400 GS End connectors - Connection B

Screw: 4 mm
Tightening torque: max. 2.5 Nm

P0400 GS End connectors - Connection B

Adhesive disc
Mat. no. 75949

Important information

Also available as magnetic version (Connector N)

P0400 GS End connectors - Connection C/E
P0400 GS End connectors - Connection C/E
P0400 GS End connectors - Connection C/E
Important information

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

  • Black
    (E) Mat-Nr. 75741*
    (C) Mat. no. 75742*
  • White
    (E) Mat.-Nr. 75886*
    (C) Mat. no. 75887*
  • Silver-gray
    (E) Mat.-Nr. 75878*
    (C) Mat. no. 75879*

*SU = 50 pieces

P0400 GS End connectors - Connection C/E

Connection E

Magnets, Magnetic retention force: max. 40 N

P0400 GS End connectors - Connection C/E

Connection C

Screw: 4 mm, Tightening torque: max. 2.5 Nm

P0400 GS End connectors - Connection C/E

Connection C

Cable tie: 5 mm

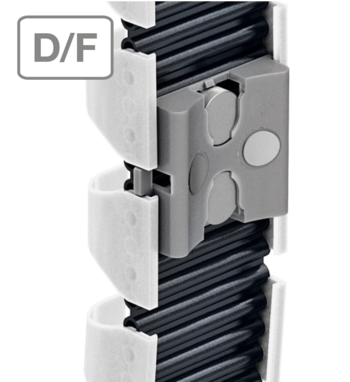

P0400 GS End connectors - Connection D/F
P0400 GS End connectors - Connection D/F
P0400 GS End connectors - Connection D/F

Color variants

  • Black
    (F) Mat. no. 75744*
    (D) Mat. no. 75743*
  • White
    (F) Mat. no. 75888*
    (D) Mat. no. 75889*
  • Silver-gray
    (F) Mat. no. 75880*
    (D) Mat. no. 75881*

*SU = 50 pieces

P0400 GS End connectors - Connection D/F

Connection F

Magnets, Magnetic retention force: max. 40 N

P0400 GS End connectors - Connection D/F

Connection D

Screw: 4 mm, Tightening torque: max. 2.5 Nm

P0400 GS End connectors - Connection D/F

Connection D

Cable tie: 5 mm

P0400 GS End connectors - Connection H
P0400 GS End connectors - Connection H
P0400 GS End connectors - Connection H

Color variants

  • Black
    Mat. no. 75992*
  • White
    Mat. no. 75994*
  • Silver-gray
    Mat. no. 75993*

*SU = 50 pieces

P0400 GS End connectors - Connection H

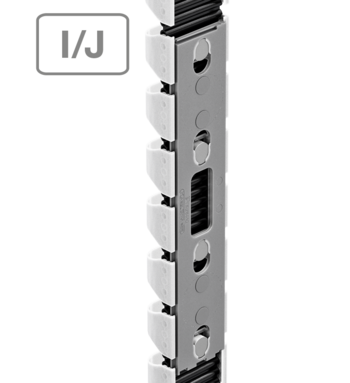

P0400 GS End connectors - Connection I/J
P0400 GS End connectors - Connection I/J
P0400 GS End connectors - Connection I/J
Important information

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

  • Black
    (I) Mat. no. 75940*
    (J) Mat. no. 75634*
  • White
    (I) Mat. no. 75941*
    (J) Mat. no. 75635*
  • Silver-gray
    (I) Mat. no. 75942*
    (J) Mat. no. 75636*

*SU = 50 pieces

P0400 GS End connectors - Connection I/J

Connection I

Up to 4 magnets
Magnetic retention force: min. 60 N

P0400 GS End connectors - Connection I/J

Connection J

Up to 4 Screws: 4 mm
Tightening torque: max. 2,5 Nm

P0400 GS End connectors - Connection I/J

Connection J

For slot nut M4
Cylinder screw: DIN 9612 M4
Washer: DIN 125

P0400 GS End connectors - Connection I/J

Connection J

Adhesive disc
Mat. no. 75949

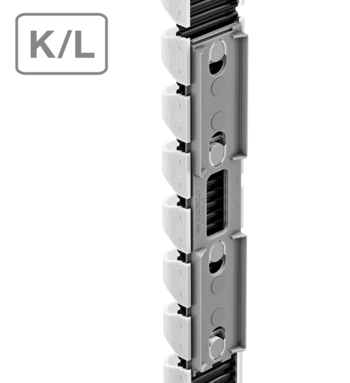

P0400 GS End connectors - Connection K/L
P0400 GS End connectors - Connection K/L
P0400 GS End connectors - Connection K/L
Important information

Individual diameters on request.

Color variants

  • Black
    (K) Mat. no. 75943*
    (L) Mat. no. 75647*
  • White
    (K) Mat. no. 75944*
    (L) Mat. no. 75648*
  • Silver-gray
    (K) Mat. no. 75945*
    (L) Mat. no. 75649*

*SU = 50 pieces

P0400 GS End connectors - Connection K/L

Connection K

Up to 4 magnets
Magnetic retention force: min. 60 N

P0400 GS End connectors - Connection K/L

Connection L

Up to 4 Screws: 4 mm
Tightening torque: max. 2,5 Nm

P0400 GS End connectors - Connection M
P0400 GS End connectors - Connection M
P0400 GS End connectors - Connection M
Important information

Individual profile cross-section on request.

Color variants

  • Black
    Mat. no. 75937*
  • White
    Mat. no. 75938*
  • Silver-gray
    Mat. no. 75939*

*SU = 50 pieces

P0400 GS End connectors - Connection M
Important information

The assembly depends on the shape of the aluminum profile. Please contact us – we are happy to advise you

P0400 GS End connectors - Connection N
P0400 GS End connectors - Connection N
P0400 GS End connectors - Connection N
Important information

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

  • Black
    Mat. no. 75937*
  • White
    Mat. no. 75938*
  • Silver-gray
    Mat. no. 75939*

*SU = 50 pieces

P0400 GS End connectors - Connection N

Magnets
Magnetic retention force: max. 35 N

P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"
Important information

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

  • Black
    Mat. no. 75812*
  • White
    Mat. no. 75814*
  • Silver-gray
    Mat. no. 75813*

*Length = 480 mm

The fixing kit includes the belt and the side parts “Clip” for a length of 480 mm. The side parts “Clip” can be combined with the following connectors:

P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"
P0400 GS End connectors - Side parts "Clip"

Order

Standard sets for height-adjustable tables (standing/seated work stations) up to 740 mm lifting heightColorOrder no. Set

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)

black
black
75968

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)

white
white
75970

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)

silver-gray
silver-gray
75969
Standard sets for height-adjustable tables (standing/seated work stations) up to 740 mm lifting heightColorOrder no. Set

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame

black
black
75964

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame

white
white
75966

Standard set Protum Office P0400GS01 for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame

silver-gray
silver-gray
75965
Standard sets for non-height adjustable tables (standard work stations)ColorOrder no. Set

Standard set Protum Office P0400GS01 for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition

black
black
75956

Standard set Protum Office P0400GS01 for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition

white
white
75958

Standard set Protum Office P0400GS01 for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition

silver-gray
silver-gray
75957
Standard sets for attaching a power stripColorOrder no. Set

Standard set of “Clip” side parts for attaching a power strip.
Fastening set for attaching on both sides. Total length 480 mm.

Black
Black
75835

Standard set of “Clip” side parts for attaching a power strip.
Fastening set for attaching on both sides. Total length 480 mm.

White
White
75837

Standard set of “Clip” side parts for attaching a power strip.
Fastening set for attaching on both sides. Total length 480 mm.

Silver-gray
Silver-gray
75836
Standard sets for cable routing P0400GS01ColorOrder no. Set

Standard set for cable routing Protum Office P0400GS01, inner cross section 50 x 21,5 mm, total length 960 mm.

Black
Black
75972

Standard set for cable routing Protum Office P0400GS01, inner cross section 50 x 21,5 mm, total length 960 mm.

White
White
75980

Standard set for cable routing Protum Office P0400GS01, inner cross section 50 x 21,5 mm, total length 960 mm.

Silver-gray
Silver-gray
75976

All sets are delivered packaged in a box including fixing materials and installation instructions. The order number applies for 1 set / 1 sales unit (SU) = 50 sets. Individual sets only for bulk buyers on request.

Downloads

Matching with

Cables for cable carriers – TRAXLINE®

Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.

to TRAXLINE®

Ready-to-connect cable carrier systems – TOTALTRAX®

From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.

to TOTALTRAX®

Services

Product Configurator
Product Configurator
Close

Product Configurator

  • Efficient, quick and complete configuration ­ the result is your individual product with an excellent price-performance ratio
  • Product configurator OnlineEngineer + suitable CAD model from CADenas without having to exit the portal
CADenas
CADenas
Close

CADenas

  • Decrease your engineering times
  • Accelerate your design processes
  • Configure with original data directly from the manufacturer
  • Providing 3D component models in a variety of CAD formats
Glossary
Glossary
Close

Glossary

Cable Carriers – Overview of general abbreviations and pictographs

Technical information
Technical information
Close

Technical information

Configuration guidelines:

  • Selecting a suitable cable carrier
  • Placement guidelines for cables and hoses
  • Installation variants
Literature
Literature
Close

Literature

The latest TSUBAKI KABELSCHLEPP information material:

Subject to change.
Contact
Please contact us:
Your contact:
