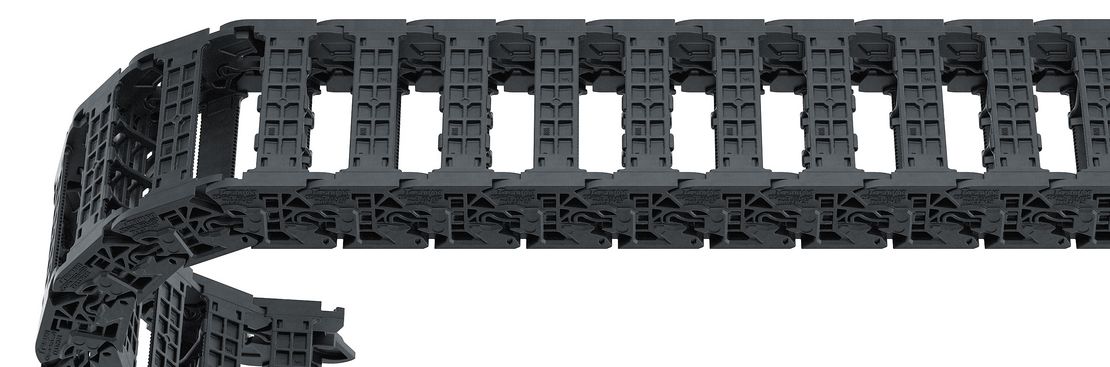

TKR0370 RE

Plastic stay RE – Frame screw-in stay

Properties

Plastic stay for light and medium loads. Assembly without screws.
Available in 5 widths.
Outside/inside: to open by rotating.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 40 – 80 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t for odd number of chain links

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	q_k [kg/m]
37	28	35	B_i + 19	0.53 – 0.61

B_i [mm]
40	50	60	70	80

KR [mm]
55	75	100

Order example

TKR0370

Type

B_i [mm]

Stay variant

KR [mm]

703

L_k [mm]

Stay arrangement

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (Version A).

Fixable dividers are available for applications with lateral accelerations and for applications lying on the side.
The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	7.5	8	6	–	–
B	A	8	6	2	–

B_i [mm]

a_{T min} [mm]

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	7.5	8	6	–	2
B	A	8	6	2	2

B_i [mm]

a_{T min} [mm]

Order example

TS1

Divider system

Version

n_T

VD0

VD1

Height separation

End connectors

UMB end connectors UMB – plastic

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom or face on.

Recommended tightening torque:
0,6 Nm for screws M4

B_i [mm]	B_EF [mm]	n_z
40	59	3
50	69	4
60	79	5
70	89	6
80	99	7

TKR0370 UMB end connectors UMB – plastic

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type
