LS/LSX1050 RR

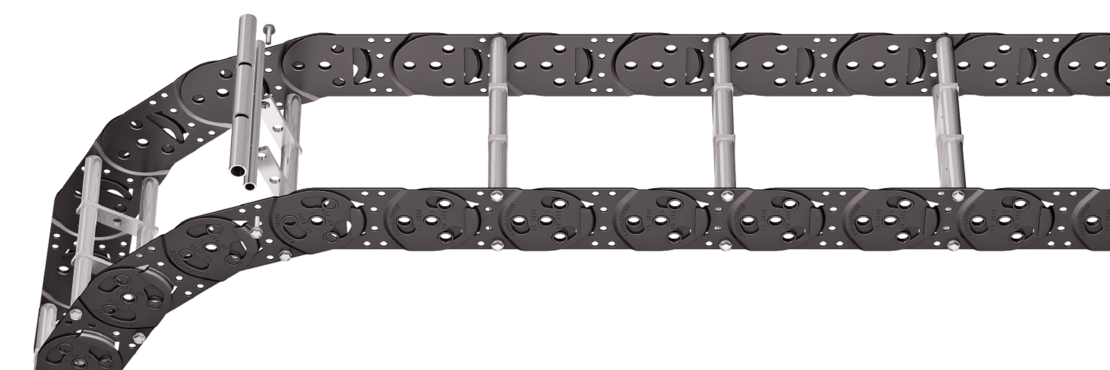

Tube stay RR – frame stay, tube version

Properties

Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing. Easy screw connection.
Available customized in 1 mm width sections.
Inside/outside: Screw connection detachable
Option: Divider systems made from steel and stainless steel ER 1, ER 1S.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 100 – 500 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	q_k [kg/m]
105	54	80	84 – 484	84 – 484	B_St + 16	4.25 – 7.80

^* in 1 mm width sections

KR [mm]
105	125	155	195	260	295	325	365	430

Order example

LS1050

Type

180

B_St [mm]

Stay variant

125

KR [mm]

Material

2415

L_k [mm]

Stay arrangement

Inner distribution

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS).
The dividers are fixed through the tubes. The tube additionally serves as a spacer between the dividers (version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
B	20	20	16	–

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
B	20	25	20	16	2

Order example

TS1

Divider system

Version

n_T

Chamber

a_x

VD0

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside

Connection surface

I – connection surface inside
A – connection surface outside

Order example

Steel

End connector

Connection point

Connection type

Connection surface

End connector

Steel

Connection point

Connection type

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
