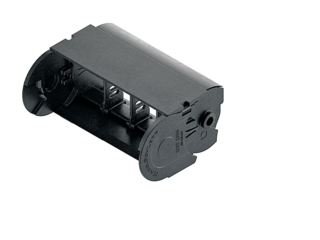

Covered on both sides with outside detachable cover
KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
100 | 268 | 298 | 425 | 190 |
125 | 318 | 348 | 504 | 215 |
150 | 368 | 398 | 582 | 240 |
175 | 418 | 448 | 661 | 265 |
200 | 468 | 498 | 739 | 290 |
225 | 518 | 548 | 818 | 315 |
250 | 568 | 598 | 896 | 340 |
300 | 668 | 698 | 1053 | 390 |
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.9 kg/m at Bi 125 mm. For other inner widths, the maximum additional load changes.
The gliding cable carrier must be guided in a channel. More information
