The design

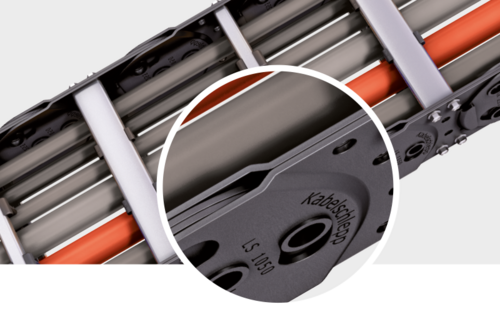

The weight-optimized link plate design makes the cable carriers very light yet highly sturdy. For the LS series, the unsupported length is significantly higher compared to plastic cable carriers of a similar size.
The hardened surface significantly increases the service life of the LS1050. Tests were carried out on cable carriers with identical designs.
The LS1050 is therefore ideal for applications with many travel cycles, for example in 3-shift operation.
Weight-optimized through adapted link plate design
Type | hi [mm] | Bk [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| LS/LSX1050 | 48 – 58 | 100 – 600 | 105 | 105 – 430 |
Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.
to TRAXLINE®From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.
to TOTALTRAX®Reliable unrolling and optimum gliding for long travel lengths
to Support traysFor optimum placement with dynamic use of cables
to Strain relief devices
