The design
Proven steel cable carriers with extremely sturdy link plates and dedicated joint design with multi stroke system and hardened bolt. The extremely sturdy design allows extensive unsupported lengths and high possible additional loads.
Sandwich design: Link plates consist of two plates
Glide shoes available for gliding applications
Stroke system with hardened bolt and circlips
Also available as open variants with different stay
Type | hi [mm] | Bk [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|

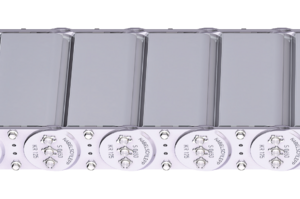

| S/SX0650 Tubes | 30 | 100 – 500 | 65 | 115 – 400 |

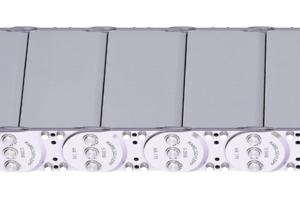

| S/SX0950 Tubes | 44 | 125 – 600 | 95 | 170 – 600 |

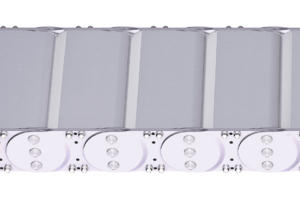

| S/SX1250 Tubes | 69 | 150 – 800 | 125 | 200 – 1000 |

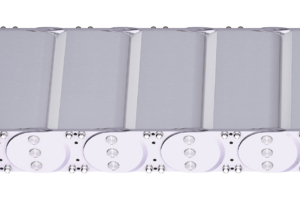

| S/SX1800 Tubes | 104 | 250 – 1000 | 180 | 320 – 1300 |
Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.
to TRAXLINE®From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.
to TOTALTRAX®Reliable unrolling and optimum gliding for long travel lengths
to Support traysFor optimum placement with dynamic use of cables
to Strain relief devices
