QuickTrax® series

Compact and cost-effective cable carriers in two-component technology

Features

  • Extremely fast and easy cable laying thanks to crossbar with film hinge
  • Each chain link consists of two different materials:
        – Hard chain body made of glass-fibre reinforced material
        – Crossbar with flexible film hinge made of elastic special plastic
  • Sturdy cable carrier design
  • High torsional rigidity
  • Very quiet through integrated noise damping
  • Extensive unsupported length
Long travel length
Opens outward
Opens inward
Sliding dividers
Height separation possible
Quiet running/low noise

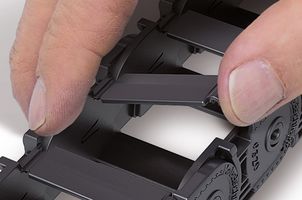

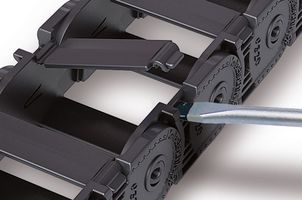

QuickTrax series Features 1
QuickTrax series Features 2

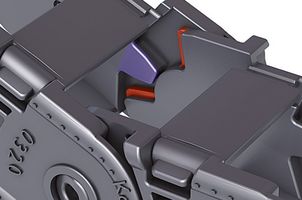

QuickTrax series Features 3

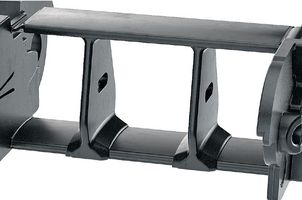

QuickTrax series Features 4

Cable carrier design

Solid plastic cable carriers: chain links and end connectors made of plastic

Each chain link consists of two different materials:

  • Hard cable carrier body made of glass fiber-reinforced material
  • Flexible lamellae made of elastic plastic
Quicktrax Cable carrier design

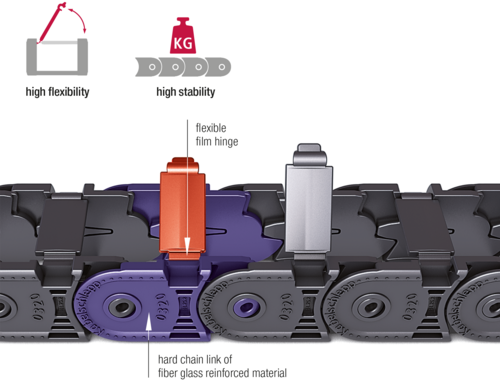

The two-component technology of the QuickTrax®

The two-component technology of the QuickTrax® combines two seemingly incompatible features: Stability and flexibility
Cable carriers need to be extremely sturdy, with extensive unsupported length. At the same time, cables need to be inserted easily for fast cable laying.
The QuickTrax® meets these requirements thanks to its innovative design and material combination of a hard cable carrier body made from glass fiber-reinforced material and crossbars with a film hinge made from rigid special plastic.

QuickTrax series 2K-Technology QT0320 EN

Comparison of dimensions

Manufacturerhi
[mm]
hG
[mm]
t
[mm]
Identical connection hole pattern
QT03202025.532 yes
Competitive product17.52330.5 yes

Comparison of bending moment

Comparison of bending strength

Load diagram

for unsupported length depending on additional load

Quicktrax Load Diagram

Advantages over competitive product

  • 20 % longer unsupported length compared to ­competitive product
  • 33 % greater additional load through use of fiber glass reinforced plastic
  • Greater inner height
  • Low noise operation due to internal damping system
  • High side stability through locking in the stroke ­system
  • Dividers can be used for cable separation

Types

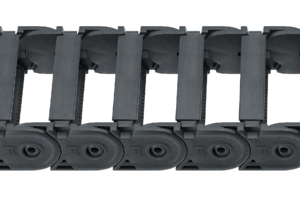

QuickTrax series QT0250

QT0250

Inner height [hi]:
17.6 mm
Inner widths [Bi]:
30 – 50 mm
Pitch [t]:
25 mm
Bending [KR]:
28 – 100 mm
more details

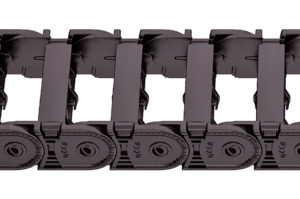

QuickTrax series QT0320

QT0320

Inner height [hi]:
20 mm
Inner widths [Bi]:
15 – 65 mm
Pitch [t]:
32 mm
Bending [KR]:
28 – 125 mm
more details
Type
hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
QT0250 17.6 30 – 50 25 28 – 100
QT0320 20 15 – 65 32 28 – 125
