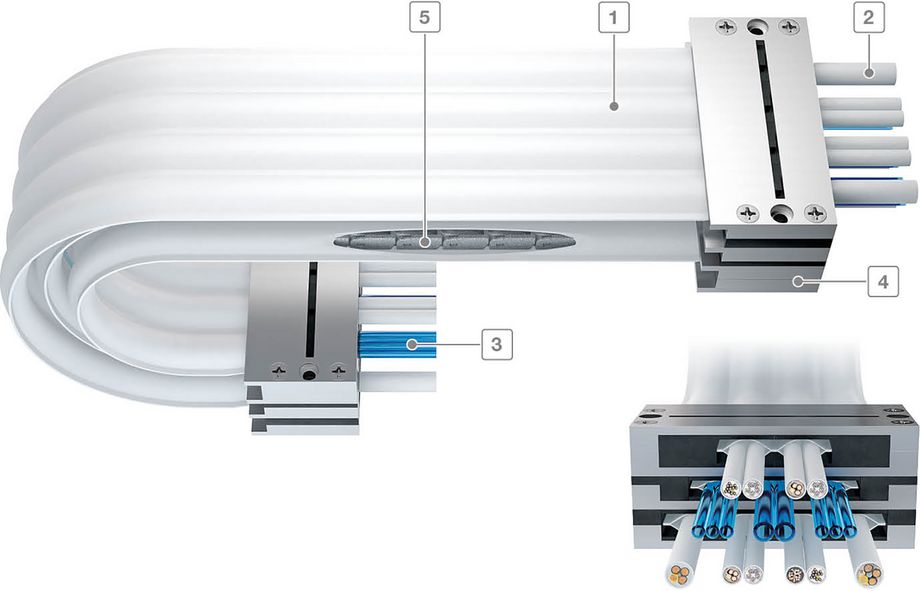

CLEANVEYOR is an extremely top-class solution with a free-standing guiding system that makes full use of our cable carrier technology and experience.
Maximum purity and hygiene!
It comes as no surprise that clean rooms, processes and products are a must! Because any contamination leads to costly incidents, scrap or useless laboratory results. CLEANVEYOR can contribute to lowering total costs, to lead reduction of defective products.
| Clamp range | Number of pods/chambers | A (mm) | B (mm) |
|---|---|---|---|
| CL-2 | 2 | 57.2 | 47.7 |
| CL-3 | 3 | 76.3 | 66.8 |
| CL-4 | 4 | 95.4 | 85.9 |
| CL-5 | 5 | 114.5 | 105 |
| CL-6 | 6 | 133.6 | 124.1 |
| CL-7 | 7 | 152.7 | 143.2 |
| CL-8 | 8 | 171.8 | 162.3 |
| Maximum travel stroke (mm) |
| Support member bending radius KR40: 1600 |
| Support member bending radius KR70: 2200 |
| Support member bending radius KR100: 2800 |
| Support member bending radius KR130: 2800 |
| Maximum travel speed (m/sec) |
| 2 |
| Maximum acceleration (G) |
| 4 |
| Operating temperature range |
| -10 to 80 degree |
| Outer diameter for cables/tubes (mm) |
| 3 to 10 |
Your global cleanroom expert:
Yuji Horishi
Manager Cleanroom Business
Fon: +49 2762 4003 - 120
Fax: +49 2762 4003 - 40120
E-mail: yuji.horishi@kabelschlepp.de
Configuration guidelines:
