KC0900 RS

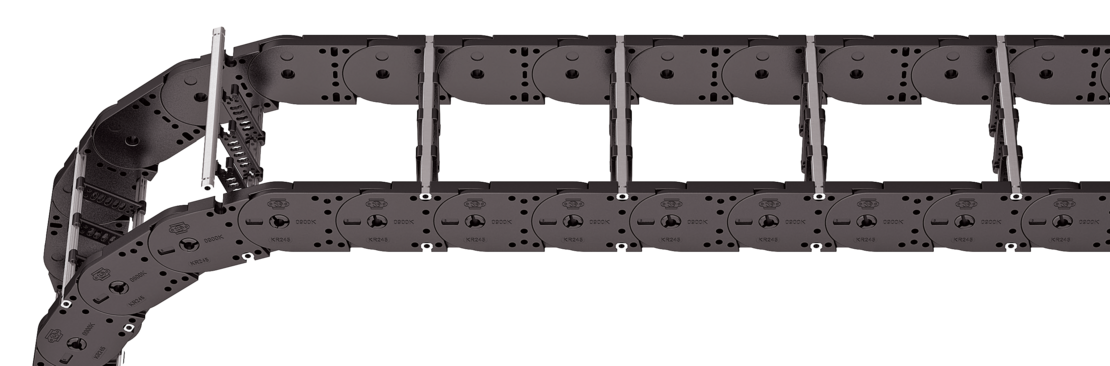

Aluminum stay RS – frame stay narrow

Properties

Extremely quick to open and close
Aluminum profile bars for light to medium loads. Assembly without screws.
Available customized in 1 mm width sections.
Outside/inside: to open by rotating 90°.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_i 100 – 400 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_i [mm] ^*	B_k [mm]	B_EF [mm]	q_k [kg/m]
90	58	78.5	100 – 400	B_i + 31	B_i + 45	2.80 – 5.80

^* in 1 mm width sections

KR [mm]
130	150	190	245	300	385

Order example

KC0900

Type

300

B_i [mm]

Stay variant

150

KR [mm]

1890

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

Inner distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2^nd chain link for stay mounting (HS).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory). The socket additionally serves as a spacer between the
dividers and is available in 1 mm sections between 3 – 50 mm. The inner height is reduced to 54 mm
(version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	7	14	10	2

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	7	25	14	10	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	7	23	19	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 4 mm).

Please note that the real dimensions may deviate slightly from the values indicated here.

Divider system TS3

with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

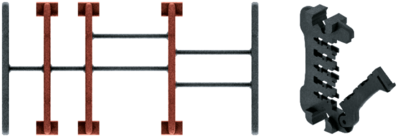

Divider version A

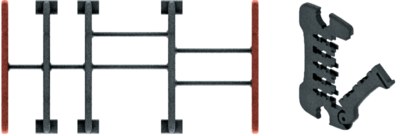

End divider

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	6/2^*	14	10	2

^* for End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using partitions with a_x > 49 mm we recommended an additional preferential central support.

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

Universal end connectors UMB plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom, face on or from the side.

K0900 Universal end connectors UMB – plastic

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.
