TKP35 series

Robust all-rounder with variable inner distribution

Dividers and height partitions for cable separation
Designs with inward or outward opening crossbars
Easy and quick to open at any position
Integrated noise damping
Interior space is gentle on the cables without sharp edges
End connectors with optional strain relief

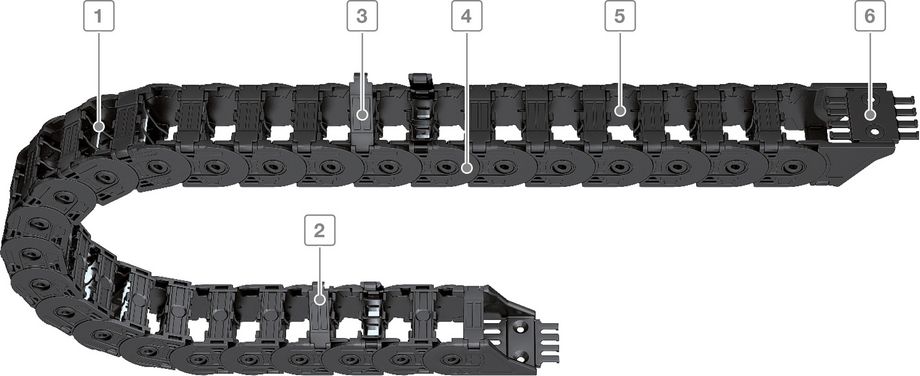

Features

Robust and extremely rigid stroke system
Quiet operation due to internal dampening system
Weight-optimized cable carrier geometry
Interior without sharp edges, design that protects the cable
Variable inner distribution
Vertical moveable dividers or with arresting cams, can be attached at 2-mm increments (not B_i 16)
Easy-to-open versions, left or right (not B_i 16)
Quick and easy to open
Optional strain relief can be fully integrated into the end connector

All pictographs

Reliable cable separation through fixable dividers

Design 030 with outside opening and detachable crossbars on both sides

Design 040 with inside opening and detachable crossbars on both sides

Optimised utilisation of the interior space; vertical and horizontal inner distribution possible

Type

Tiles view List view

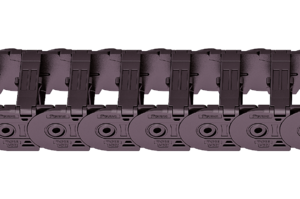

TKP35

Inner height [h_i]:

32 mm

Inner widths [B_i]:

16 – 50 mm

Pitch [t]:

35 mm

Bending [KR]:

48 – 125 mm

more details

Type	h_i [mm]	B_i [mm]	t [mm]	KR [mm]
TKP35	32	16 – 50	35	48 – 125
