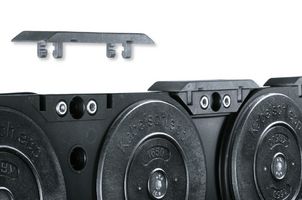

Bolted covers systems for maximum stability even for large cable carrier widths
Replaceable glide shoes for long service life for gliding applications

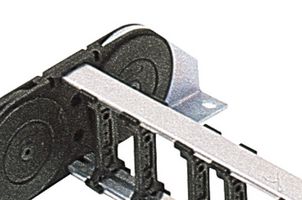

Sturdy end connectors made of steel (different connection variants)

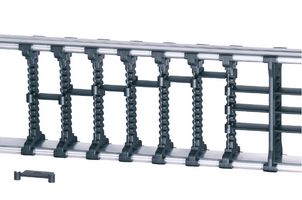

Many separation options for the cables
Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|

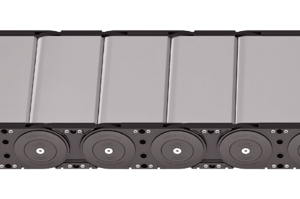

| XLT1650 | 105 | 200 – 1000 | 165 | 300 – 550 |
Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.
to TRAXLINE®From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.
to TOTALTRAX®Reliable unrolling and optimum gliding for long travel lengths
to Support traysFor optimum placement with dynamic use of cables
to Strain relief devices
