Cables for cable carriers

TRAXLINE®

Reliable – Robust – With high availability


TRAXLINE® cables for cable carriers: Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and applications. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands

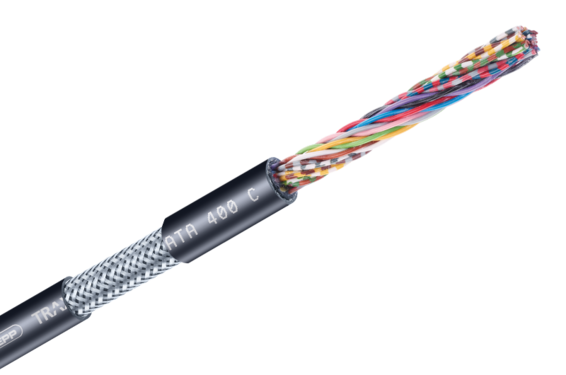

  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands

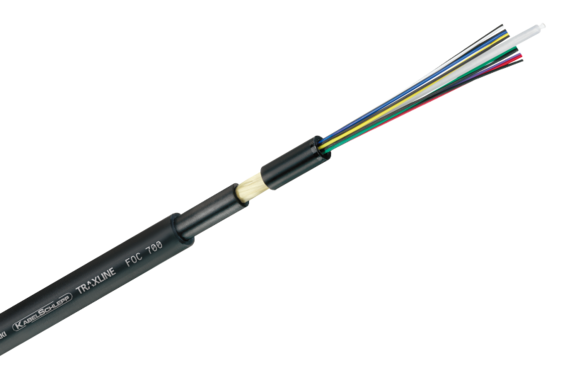

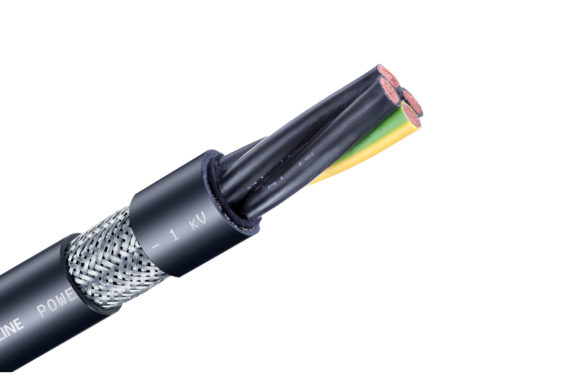

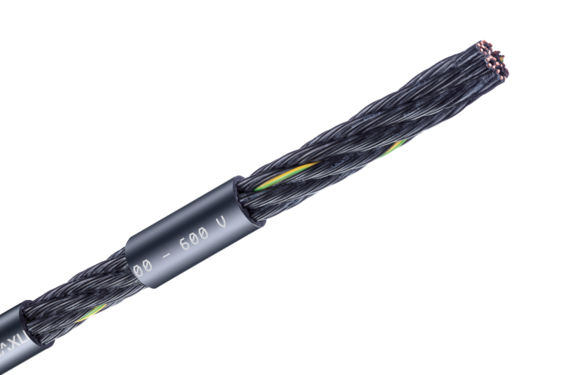

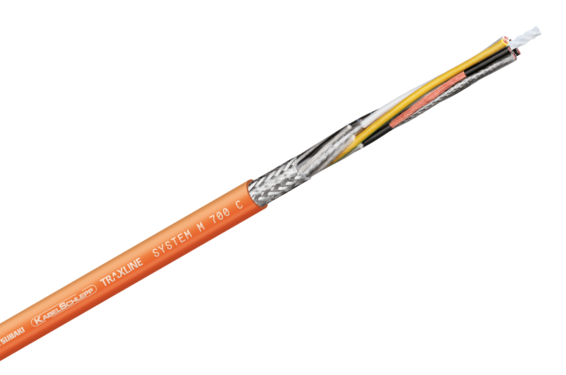

  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

TRAXLINE® Schleppkettenleitungen: Zuverlässig, robust mit hoher Verfügbarkeit. Profitieren Sie von langjähriger Erfahrung kombiniert mit ständiger Optimierung bewährt in Tests und vielfältigen Anwendungen. TRAXLINE® Leitungen stehen für kompetente Systemberatung sowie weltweiten Vor-Ort-Service.

Unsere Serien sind in verschiedenen Qualitäten verfügbar:

  • 200/200C: Lagenverseilte Leitungen mit PVC Außenmantel für leichte bis mittelschwere Beanspruchung
  • 400/400C: Bündelverseilte Leitungen mit PVC Außenmantel für mittelschwere Beanspruchung
  • 700/700C: Bündelverseilte Leitungen mit PUR Außenmantel für schwere Beanspruchung
  • 1000/1000C: Bündelverseilte Leitungen mit TPE Außenmantel für schwerste Beanspruchung

Lines

Matching with

Cable carriers made of plastic and steel – Cable carriers

Whether cable carriers made of steel, plastic or hybrid product – at KABELSCHLEPP® the conditions of your application determine the material. After assessing your application parameters we will recommend a product that represents the optimum in terms of load capacity, durability and longevity. The material itself is secondary. You can choose from our product portfolio of thousands of types between standard widths and individual millimeter grids – just as required.

to Cable carriers

Ready-to-connect cable carrier systems – TOTALTRAX®

From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.

to TOTALTRAX®

Accessories

For optimum placement with dynamic use of cables.

to Strain relief devices
