Belt conveyors

The all-rounders – also for parts with sharp edges

Our belt conveyors are predominantly used on punch-nibbling machines, for transporting punching scrap and punching trimmings. However, other parts can also be transported, such as waste parts from plastic injection machines. The transport belt of the conveyor is resistant to most oil and grease.


  • Housing made of sheet metal
  • Convex return shafts
  • Adjustable belt tension

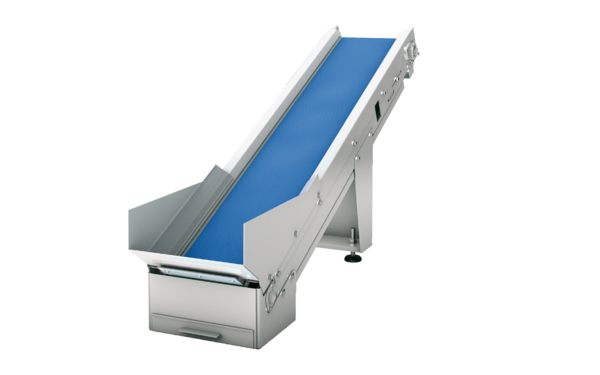

Belt conveyors Standard Design

Standard design

The parts conveyor for semi-finished and finished parts

This belt conveyor is predominantly utilized for transporting away semi-finished and finished parts. The deposit trough at the conveyor discharge is equipped with an insulating mat to protect the material being conveyed from damage.

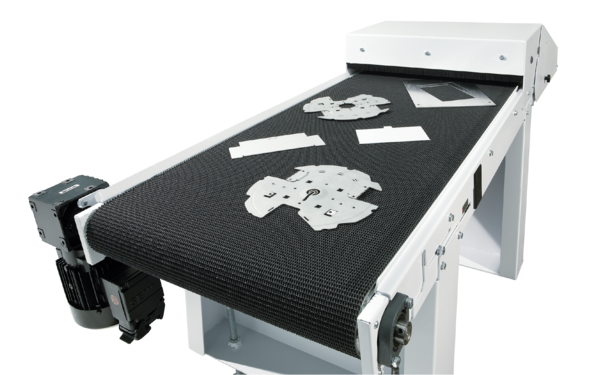

Belt conveyors Sample 1
The gentle transport solution for applications without accumulation of cooling lubricant.
  • Also suitable for sharp-edged parts
  • Special solution for parts with temperatures > 100°C possible


Standard dimensions
FL max
GBF 11340134250450650850105012001400 BG + 70 12000

Deviating specifications on request

Belt conveyors Standard dimensions 1
Belt conveyors Standard dimensions 2
Belt conveyors Standard dimensions 3

Explanation of terms:

BG = Belt width
HK = Box height
BK = Box weight
HB = Panel height
FL = Conveying length
HT = Hopper height
HU = Deflection shaft height
HA = Discharge height
α = Incline angle (maximum 30°)

All electrical components in CE design.
Additional local specifications on request. Please contact our support-team.
