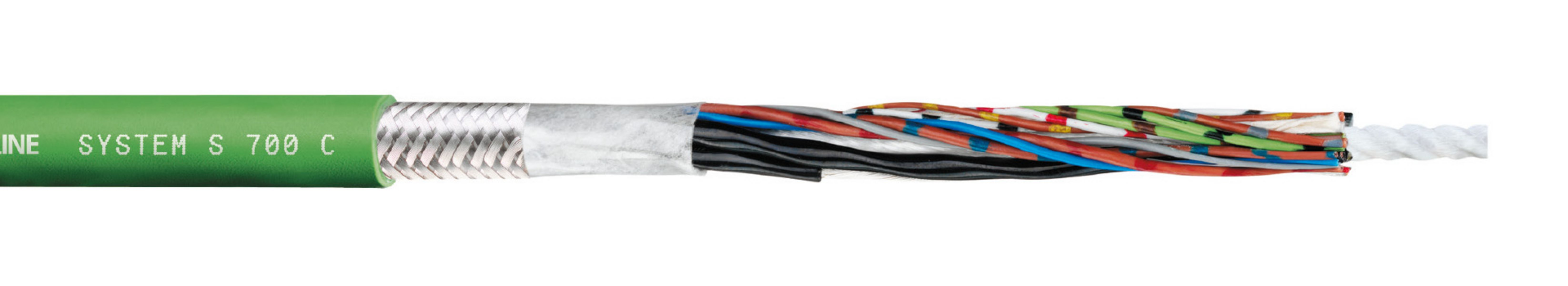

SYSTEM S 700 C

General information

Power supply and control for servo drives
Alternative to Original Equipment Manufacturer
Outer jacket pressure extruded and high abrasion resistant
Hybrid stranded

Norms and standards

Oil-resistant
UV-resistant
Petroleum resistant
Halogene free
CFC-free
REACH/ROHS II
Flame retardant

Up to5 Millionmotion cycles!

Up to50 mtravel length!

Design

Conductor:

Class 6

Core insulation:

PP/9Y

Core identification:

Color coded as per SIEMENS OEM

Shield:

Shielded

Outer jacket color:

Green

Outer jacket material:

PUR

Technical Data

Temperature range while moved:

-30 °C up to 90 °C
(-30 °C up to 80 °C UL)

Minimum bend radius while moved:

KR_min = 7.5 x ∅

V_max unsupported:

5 m/s

V_max gliding:

5 m/s

A_max unsupported:

50 m/s²

A_max gliding:

50 m/s²

Insulation resistance:

> 10 MΩ x km

Type selection

TKG alternative to OEM standard	Core number x Cross-section	Part no.	max. ∅ mm	Cable weight kg/m	Copper index kg/m	Datasheet
–	(5x2x0.14²+2x0.5²)	46090	9	0.093	0.072	View
6FX8008 1BD11	(8x2x0.18²)	46100	8	0.088	0.054	View
6FX8008 2DC00	(2x2x0.20²+1x2x0.38²)	46104	7.1	0.072	0.041	View
6FX8008 1BD21	(4x2x0.38²+4x0.5²)	46105	9.1	0.116	0.083	View
6FX8008 1BD31	(3x(2x0.14²)+2x(0.5²))	46110	9.2	0.125	0.074	View
6FX8008 1BD41	(3x(2x0.14²)+4x0.14²+2x0.5²)	46115	9	0.11	0.066	View
6FX8008 1BD51	(3x(2x0.14²)+4x0.14²+4x0.23²+2x0.5²)	46120	9.6	0.129	0.075	View
6FX8008 1BD61	(4x2x0.18²)	46125	6.6	0.06	0.035	View
6FX8008 1BD71	(2x2x0.18²)	46130	5.2	0.038	0.024	View
6FX8008 1BD81	(12x0.22²)	46135	7.1	0.076	0.065	View
INK 0448	(4x2x0.25²+2x0.5²)	46400	8.8	0.103	0.051	View
INK 0209	(4x2x0.25²+2x1²)	46410	9.1	0.118	0.064	View
INK 0280	(3x0.25²+3x(2x0.25²)+2x1²)	46412	9.3	0.13	0.084	View
INK 0532	(2x0.14²+(4x0.14²)+4x1²)	46415	9.8	0.14	0.081	View
–	(4x2x0.14²+4x0.5²)	46505	8.8	0.102	0.052	View

Additional cable types upon request
