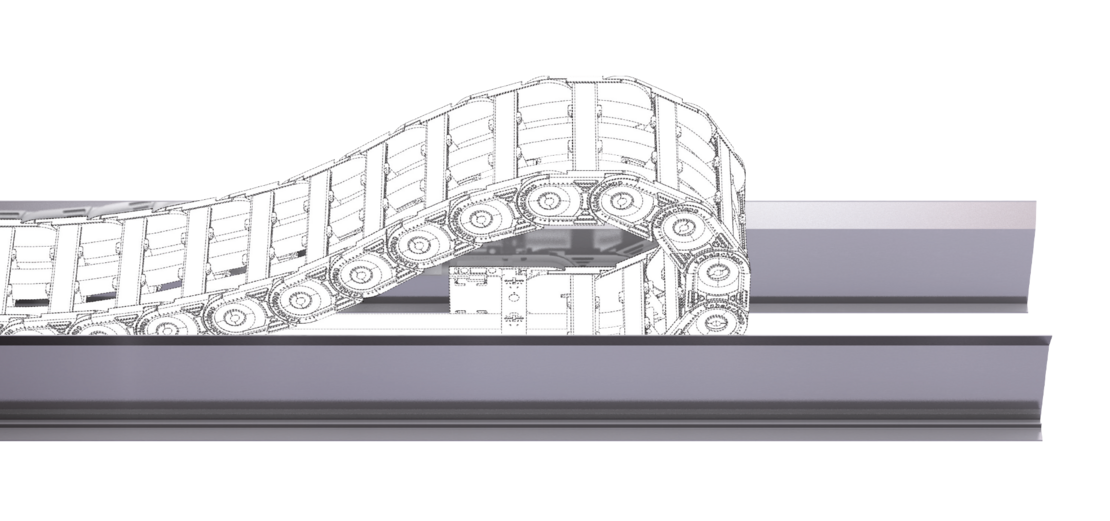

Aluminum Channel

Aluminum guide channels


Vlastnosti

  • Version made from aluminum profiles.
  • Low intrinsic weight.
  • Standard lengths.
Deliace priečky v každom druhom článku

Channel side wall
Al alloy

Deliace priečky v každom článku

Standard lengths for channel side wall 2000 mm
Standard lengths for clamping profile 130 mm

Features
  • No screw connections on joins, alignment through double clamping connection with plastic clamping profiles
  • Available with continuous bottom panel on request
  • Easy handling
  • Low intrinsic weight
  • One part channel side walls
  • Channel side wall profiles with support, with start-up bevel on both sides

Versions

One-sided arrangement

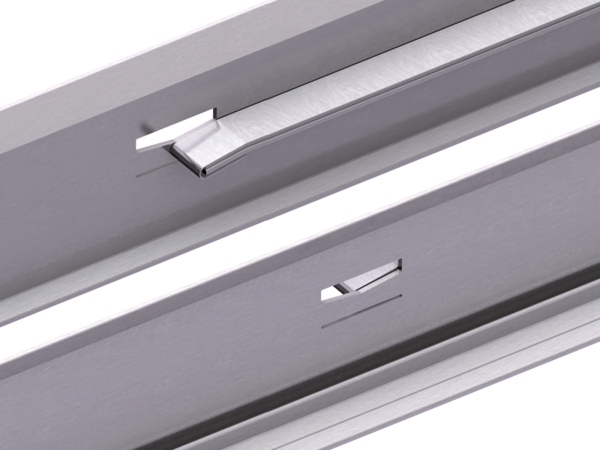

For one-sided arrangement of the cable carrier, the cable carrier slides behind the fixed point on a continuous slide support with run-off bevels.

Open design

Channel profile with and without supports incl. run-on bevels.

Dirt and water can drop through without restrictions.

Open design

Channel profile with and without supports incl. run-on bevels.

Dirt and water can drop through without restrictions.

Opposite arrangement

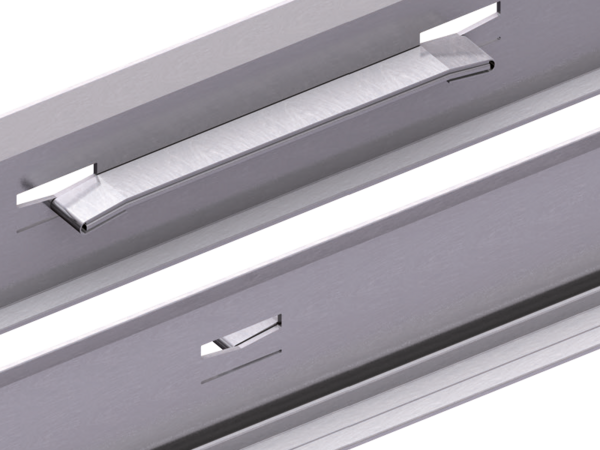

For opposite arrangement, a slide support is also attached for bridging between the fixed point connections.

Open design

Channel profile with and without supports incl. run-on bevels.

Dirt and water can drop through without restrictions.

Open design

Channel profile with and without supports incl. run-on bevels.

Dirt and water can drop through without restrictions.

Dimensions

Aluminium channel dimensions Design A without slide support
Design A – without slide support
Aluminium channel dimensions Design A with slide support
Design A – with slide support
Aluminium channel dimensions Design B without slide support
Design B – without slide support
Aluminium channel dimensions Design B with slide support
Design B – with slide support

MONO series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
0130/0132
A 18 1,5 38 Bk + 3 Bk + 16 BK + 26 1,5 6
0180/0182
A 18 1,5 38 Bk + 3 Bk + 16 BK + 26 1,5 6
0202
A 18 1,5 38 Bk + 3 Bk + 16 BK + 26 1,5 6

QuickTrax® series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
QT0320
B 27,5 1,5 55 Bk + 3 Bk + 29 BK + 42 1,5 7

UNIFLEX Advanced series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
UA1320
B 27,5 1,5 55 Bk + 3 Bk + 29 BK + 42 1,5 7

EasyTrax® series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
ET0180
A 18 1,5 38 Bk + 3 Bk + 16 BK + 26 1,5 6
ET0320.030
B 27,5 1,5 55 Bk + 3 Bk + 29 BK + 42 1,5 7

M series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
M0320
B 27,5 1,5 55 Bk + 3 Bk + 29 BK + 42 1,5 7

TKA series

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Typový radKonštrukcia
h1
[mm]
h2
[mm]
hKA
[mm]
b1
[mm]
b2
[mm]
BKA
[mm]
s1
[mm]
s2
[mm]
D
[mm]
TKA30
B 27,5 1,5 55 Bk + 3 Bk + 29 BK + 42 1,5 7

Fixing Elements

Screw connection from “outside”

Fixing holes are drilled for this purpose. A marking groove facilitates alignment and drilling.

Aluminium channel screw connection outside Perspective
Aluminium channel screw connection outside Front
Calculating C-profile length
C-profile length LP: LP = BKA + 90 mm
C-profile length LP rounded to 50 mm

Order

To order the Aluminium channel , please provide the following information:

  • Number of guide channels
  • Total length of channel
  • Support length LKA'
  • Ouer height of guide channel hKA
  • Inner width of guide channel b1
  • Support height h1
  • Design
