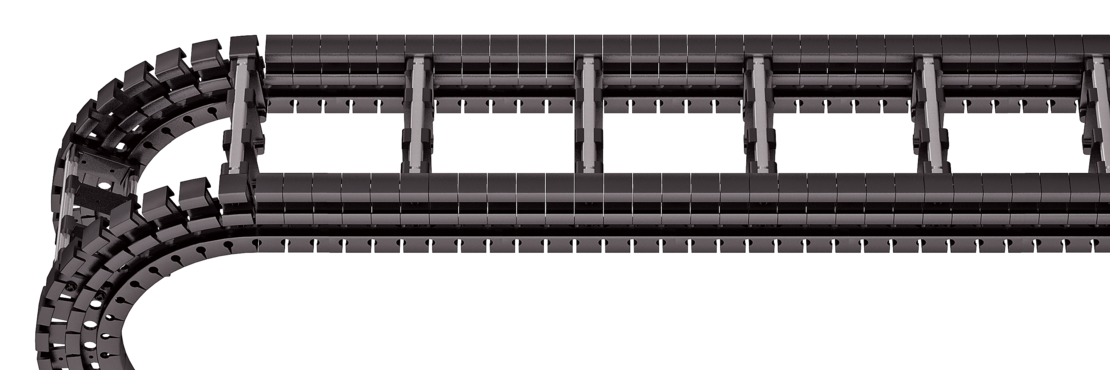

Q060 RS

Aluminum stay RS – frame stay narrow

Vlastnosti

Extremely quick to open and close
Aluminum profile bars for light to medium loads. Assembly without screws.
Available customized in 1 mm sections.
Outside/inside: release by rotating 90°.

Stays on every 6^th section, standard (HS: half-stayed)

Stays on every 3^rd section (VS: fully-stayed)

B_i von 38 – 500 mm im 1 mm mriežka

Všetky piktogramy

Rozmery

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

Number of glide shoes: Pitch per cable carrier length/3 x 2

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_i [mm] ^*	B_k [mm]	B_EF [mm]	q_k [kg/m]
20	38	60	66	38 – 500	B_i + 52	B_i + 56	1,25 – 2,40

^* v m šírky

KR [mm]
100	120	150	190	250	300

Príklad objednania

Q060

Typový rad

200

B_i [mm]

Konštrukcia mostíka

150

KR [mm]

1540

L_k [mm]

Usporiadanie mostíka

Pri posuvnom prevedení využite našu technickú podporu: info@kabelschlepp.sk

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

The divider system is mounted on each crossbar as a standard – on every 6th section for stay mounting (HS).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory).
The socket additionally acts as a spacer between the dividers and is available in 1 mm sections between 3 – 50 mm (Version B).

Divider system TS0

without height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	13,5	13	10	2

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Verzia	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	13,5	20	13	10	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	8,5	21	15	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 3 mm).

Divider system TS3

with height separation consisting of plastic partitions

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	11	16 / 42^*	8	2

^* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions with 1 mm increments with a_x > 42 mm are also available.

a_x (vzdialenosť stredov deliacich priečok) [mm]
a_c (užitočná šírka vnútornej komory) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using plastic partitions with a_x > 112 mm, we recommend an additional center support with a twin divider (S_T = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Príklad objednania

TS3

Systém mriežok

Verzia

n_T

Komora

a_x

VR1

VR5

výškové rozdelenie

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

Pripojovacie prvky

Universal end connectors UMB – plastic (standard)

The universal end connectors (UMB) are made from plastic and can be mounted from the top, from the bottom or face on.

Recommended tightening torque: 10 Nm

Q060 Universal end connectors UMB – plastic (standard)

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

U – universal end connector

Príklad objednania

UMB

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

pripojeniesprvok

UMB

pripojeniebod

Spôsob pripojenia

We recommend the use of strain reliefs at the driver and fixed point.
