P0240 GS.010

Stay variant 010 – with lamellae in the outer radius

Vlastnosti

Belt with clip-on side parts.
Outside: for pressing in.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 50 mm

Všetky piktogramy

Rozmery

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_k [mm]	q_k [kg/m]
24	10	23	50	B_i + 4	0,28

Standard colors

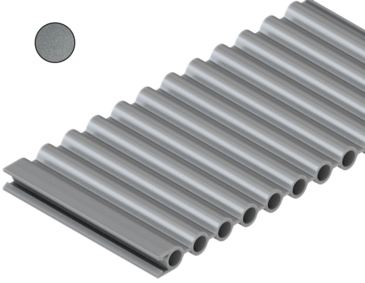

P0240 GS.010 Color variants Silvergray (1)

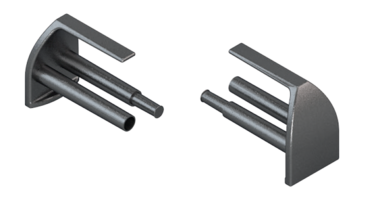

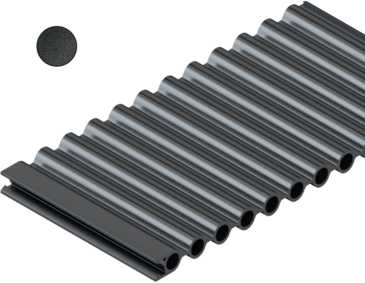

Black (RAL 9005)
Mat. no. 75637*

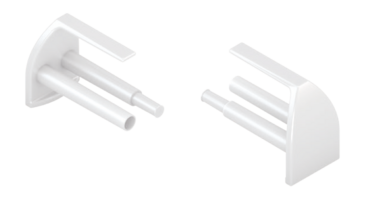

White (RAL 9010)
Mat. no. 75645*

P0240 GS.010 Color variants Silvergray (2)

Silver-gray (RAL 9023)
Mat. no. 75641*

* Length: 960 mm

For bulk buyers, the color variants of the belt, the side parts and the connections can be individually
combined on request. Colored items may have color differences.

End connectors

Combination options for end connectors

Depending on the design of your office furniture, different combination options are possible for the end connectors. They can be attached underneath table tops/cable conduits, to round or square table legs or to the floor.

Combination options for tables without height adjustment

P0240 GS Connection element for non-height adjustable desk

Calculating the cable carrier length

Cable carrier length L_K

L_K= H_z – 31
[rounded up to n x 8]
n_K=(L_K – 64) / 24
[rounded up]
l₂= L_K – (n_K – 1) x 24 – 44

Combination options for tables with height adjustment

P0240 GS Connection element for height adjustable desk C/D/E/F

Calculating the cable carrier length

Cable carrier length L_k

L_K= n_K x 24 + 40
n_K= (H_Z + 56) / 24
[rounded up]

Combination options for tables with height adjustment

P0240 GS Connection element for height adjustable desk M

Calculating the cable carrier length

Cable carrier length L_k

L_K= n_K x 24 + 40
n_K= (H_Z + 56) / 24
[rounded up]

Combination options for tables with height adjustment

P0240 GS Connection element for height adjustable desk I/J/K/L

Calculating the cable carrier length

Cable carrier length L_k

L_K= n_K x 24 + 40
n_K= (H_Z + 56) / 24
[rounded up]

All connections and cable carriers can be combined with each other and are available in the colour variants silver-grey, black and white.

Pripojovacie prvky

Connection A – angled for table top

Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.

Color variants

Black
Mat. no. 75739*
White
Mat. no. 75884*
Silver-gray
Mat. no. 75876*

*SU = 50 pieces

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Adhesive disc
Mat. no. 75949

Connection B – oval for table top

Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.

Color variants

Black
Mat. no. 75740*
White
Mat. no. 75885*
Silver-gray
Mat. no. 75877*

*SU = 50 pieces

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Adhesive disc
Mat. no. 75949

Also available as magnetic version (Connector N)

Connection C/E – for flat table frame

Connection for installing the cable routing on a square table frame. Fixing with integrated magnets, screws or cable ties.

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

Black
(E) Mat-Nr. 75741*
(C) Mat. no. 75742*
White
(E) Mat.-Nr. 75886*
(C) Mat. no. 75887*
Silver-gray
(E) Mat.-Nr. 75878*
(C) Mat. no. 75879*

*SU = 50 pieces

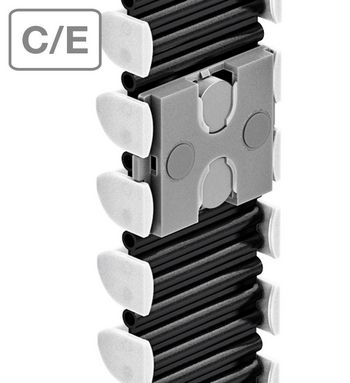

P0240 GS End connectors - Connection C/E

Connection E

Magnets, Magnetic retention force: max. 40 N

Connection C

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Connection C

Cable tie: 5 mm

Connection D/F – for round table frame

Connection for installing the cable routing on a table frame with 70 mm diameter. Fixing with integrated magnets, screws or cable ties.

Color variants

Black
(F) Mat. no. 75744*
(D) Mat. no. 75743*
White
(F) Mat. no. 75888*
(D) Mat. no. 75889*
Silver-gray
(F) Mat. no. 75880*
(D) Mat. no. 75881*

*SU = 50 pieces

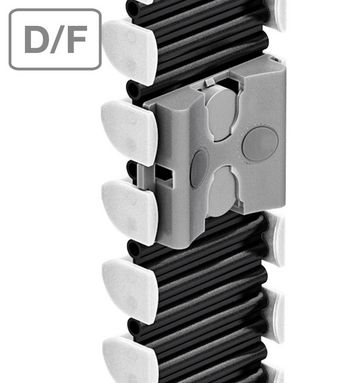

P0240 GS End connectors - Connection D/F

Connection F

Magnets, Magnetic retention force: max. 40 N

Connection D

Screw: 4 mm
Tightening torque: max. 2.5 Nm

Connection D

Cable tie: 5 mm

Connection G – floor connection

Floor connection for a clean transition of the cable routing to the floor.
Individual colors and designs on request.

Color variants

Black
Mat. no. 75745*
White
Mat. no. 75890*
Silver-gray
Mat. no. 75882*

*SU = 50 pieces

Connection H – for table base

Connection for installing the cable routing on a table base.
Fixing by clipping.

Color variants

Black
Mat. no. 75992*
White
Mat. no. 75994*
Silver-gray
Mat. no. 75993*

*SU = 50 pieces

Connection I/J – for flat table frame

Connection for installing the cable routing on a square table frame.
Fixing with integrated magnets or screws.

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

Black
(I) Mat. no. 75940*
(J) Mat. no. 75634*
White
(I) Mat. no. 75941*
(J) Mat. no. 75635*
Silver-gray
(I) Mat. no. 75942*
(J) Mat. no. 75636*

*SU = 50 pieces

Connection I

Up to 4 magnets
Magnetic retention force: min. 60 N

Connection J

Up to 4 Screws: 4 mm
Tightening torque: max. 2,5 Nm

Connection J

For slot nut M4
Cylinder screw: DIN 9612 M4
Washer: DIN 125

Connection J

Adhesive disc
Mat. no. 75949

Connection K/L – for round table frame

Connection for installing the cable routing on a table frame with 70 mm diameter.
Fixing with integrated magnets or screws.

Individual diameters on request.

Color variants

Black
(K) Mat. no. 75943*
(L) Mat. no. 75647*
White
(K) Mat. no. 75944*
(L) Mat. no. 75648*
Silver-gray
(K) Mat. no. 75945*
(L) Mat. no. 75649*

*SU = 50 pieces

Connection K

Up to 4 magnets
Magnetic retention force: min. 60 N

Connection L

Up to 4 Screws: 4 mm
Tightening torque: max. 2,5 Nm

Connection M – for profiles flat

Connection for installing the cable routing on aluminum profiles rectangular.
Fixing via integrated clip.

Individual profile cross-section on request.

Color variants

Black
Mat. no. 75937*
White
Mat. no. 75938*
Silver-gray
Mat. no. 75939*

*SU = 50 pieces

The assembly depends on the shape of the aluminum profile. Please contact us – we are happy to advise you

Connection N – oval for table top

Table connection for installing the cable routing underneath the table top or on a cable conduit via integrated magnets.

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

Black
Mat. no. 75937*
White
Mat. no. 75938*
Silver-gray
Mat. no. 75939*

*SU = 50 pieces

Magnets
Magnetic retention force: max. 35 N

Side parts "Clip" – Fixing kit for connection on both sides

Connection for installing the cable routing and attachments such as connector strips, adapters and much more. Fixing with integrated magnets or screws.

Self-adhesive counterholder available for non-magnetic surfaces!

Color variants

Black
Mat. no. 75815*
White
Mat. no. 75817*
Silver-gray
Mat. no. 75816*

*Length: 480 mm

The fixing kit includes the belt and the side parts “Clip” for a length of 480 mm. The side parts “Clip” can be combined with the following connectors:

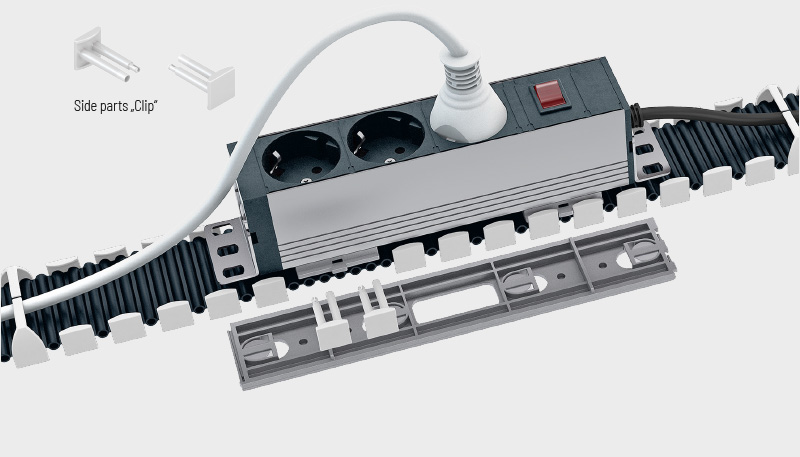

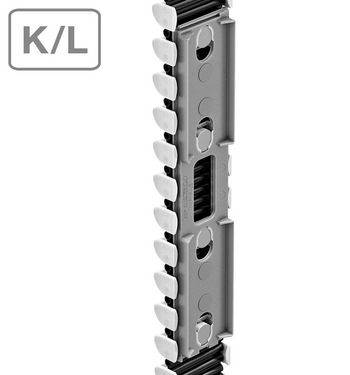

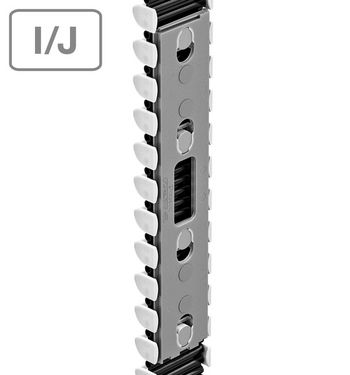

P0240 GS End connectors - Side parts "Clip"

Order

Standard sets for height-adjustable tables (standing/seated work stations) up to 740 mm lifting height	Farba	ada objednávacie číslo
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)	Black	75905
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)	White	75907
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections F for installation underneath a table top and on a round table frame (D=70 mm)	Silver-gray	75906

Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame	Black	75901
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame	White	75903
Standard set Protum Office P0240GS for standing/seated work station for one-sided cable laying, total length 1350 mm incl. 1 connection B and 2 connections E for installation underneath a table top and on a flat table frame	Silver-gray	75902

Standard sets for non-height adjustable tables (standard work stations)	Farba	ada objednávacie číslo
Standard set Protum Office P0400GS for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	Black	75896
Standard set Protum Office P0400GS for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	White	75898
Standard set Protum Office P0400GS for standard work station for one-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition	Silver-gray	75897

Standard sets for attaching a power strip	Farba	ada objednávacie číslo
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	Black	75815
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	White	75817
Standard set of “Clip” side parts for attaching a power strip. Fastening set for attaching on both sides. Total length 480 mm.	Silver-gray	75816

Standard sets for cable routing P0240GS	Farba	ada objednávacie číslo
Standard set for cable routing Protum Office P0240GS, inner cross section 50 x 10 mm, total length 960 mm.	Black	75637
Standard set for cable routing Protum Office P0240GS, inner cross section 50 x 10 mm, total length 960 mm.	White	75645
Standard set for cable routing Protum Office P0240GS, inner cross section 50 x 10 mm, total length 960 mm.	Silver-gray	75641

All sets are delivered packaged in a box including fixing materials and installation instructions. The order number applies for 1 set / 1 sales unit (SU) = 50 sets. Individual sets only for bulk buyers on request.
