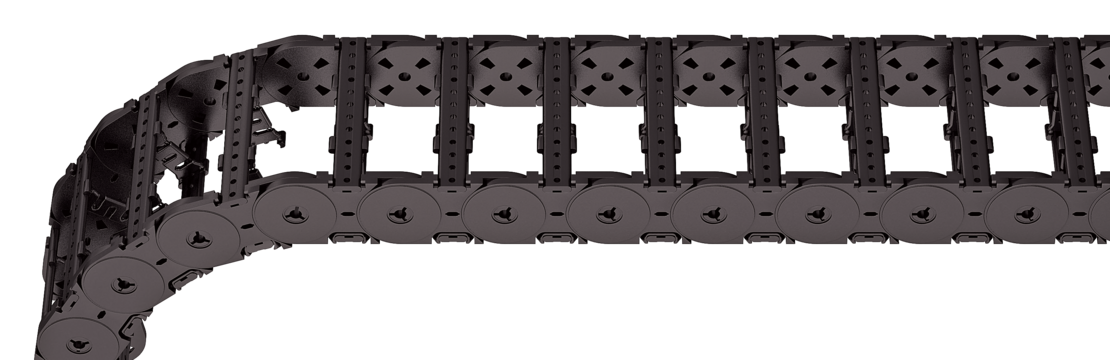

MK0475 RD 01

Plastic stay RD 01 – frame stay with hinge in the inner radius

Vlastnosti

Plastic profile bars with hinge for light to medium loads.
Assembly without screws.
Available customized in 8 mm grid.
Outside: release by turning by 90°.
Inside: swivable to both sides.

Stay arrangement on each chain link (VS: fully-stayed)

B_i von 24 – 280 mm im 8 mm mriežka

Všetky piktogramy

Rozmery

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	B_EF [mm]	q_k [kg/m]
47,5	28	39	B_i + 17	B_i + 17	0,79 – 3,03

B_i [mm]
24	32	40	48	56	64	72	80	88	96
104	112	120	128	136	144	152	160	168	176
184	192	200	208	216	224	232	240	248	256
264	272	280

KR [mm]
55	75	100	130	160	200	250	300

Príklad objednania

MK0475

Typový rad

128

B_i [mm]

RD 01

Konštrukcia mostíka

100

KR [mm]

1425

L_k [mm]

Usporiadanie mostíka

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2^nd chain link (HS).
As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

The dividers are easily attached to the stay for applications with lateral acceleration and for applications laying on their side by simply turning the frame stay by 180°. The arresting cams click into place in the locking grids in the crossbars (Version B). The groove in the frame stay faces outwards.

Divider system TS0

without height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	6	7,8	5	–	–
B	12	8	5,2	8	–

The dividers can be moved within the cross section (version A) or fixed (version B).

Divider system TS1

with continuous height separation

Verzia	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	6	20	7,8	5	–	2
B	12	20	8	5,2	8	2

The dividers can be moved within the cross section (version A) or fixed (version B).

Divider system TS2

with partial height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
B	12	8^*/24	5,2^*/21,2	8	2

^* for VR0

With grid distribution (8 mm grid). The dividers are fixed by the height separation, the complete divider system is movable in the cross section (version A) or fixed (version B).

Príklad objednania

TS2

Systém mriežok

Verzia

n_T

Komora

a_x

VR1

VR3

výškové rozdelenie

Pripojovacie prvky

End connectors – plastic/steel (with strain relief)

Link end connector made of plastic, end connector made of sheet steel with screw-fixed aluminum strain relief. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

B_i [mm]	X [mm]	n_z
40	17,5	3
56	21,5	4
80	17,5	6
104	19	8
128	19,5	9
152	17,5	11
192	18,5	14

M0475 End connectors – plastic/steel (with strain relief)

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

A – threaded joint outside (standard)
I – threaded joint inside

Pripojovacia plocha

I – connection surface inside

Príklad objednania

Plastic/steel

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

pripojeniesprvok

Plastic/steel

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

End connectors – plastic/steel

Plastic link end connector, steel end connector. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Pripojovacia plocha

I – connection surface inside
A – connection surface outside

Príklad objednania

Plastic/steel

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

pripojeniesprvok

Plastic/steel

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

We recommend the use of strain reliefs at the driver and fixed point.
