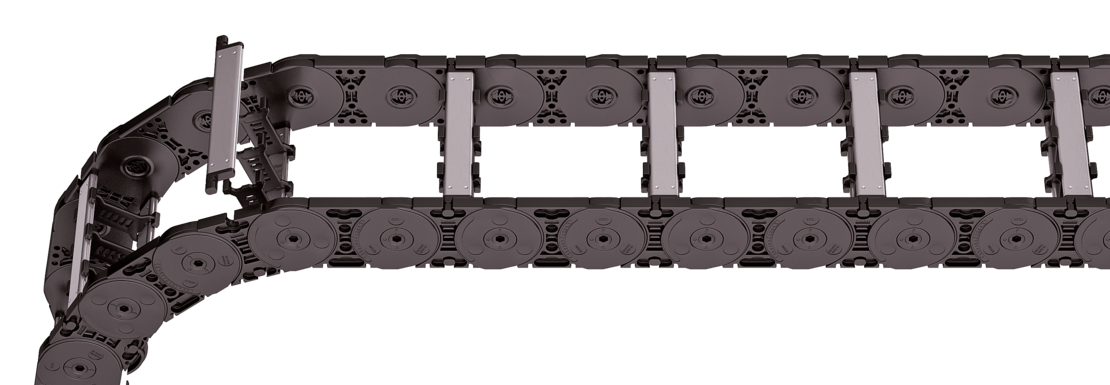

MC0950 RV

Aluminum stay RV – frame stay reinforced

Vlastnosti

Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
Available customized in 1 mm grid.
Outside/inside: release by turning by 90°.

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_i von 75 – 500 mm im 1 mm mriežka

Všetky piktogramy

Rozmery

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

For rough environmental conditions, we recommend the use of OFFROAD glide shoes with 80 % higher wear volume.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	h_G' Offroad [mm]	B_i [mm] ^*	B_k [mm]	B_EF [mm]	q_k [kg/m]
95	58	80	83,5	86	75 – 500	B_i + 39	B_i + 39	3,32 – 6,02

^* v m šírky

KR [mm]
140	170	200	260	290	320	380

Príklad objednania

MC0950

Typový rad

400

B_i [mm]

Konštrukcia mostíka

200

KR [mm]

2850

L_k [mm]

Usporiadanie mostíka

Pri posuvnom prevedení využite našu technickú podporu: info@kabelschlepp.sk

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2^nd chain link (HS).
As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Divider system TS0

without height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4,5	14	10	2

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Verzia	a_{T min} [mm]	a_{T max} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4,5	25	14	10	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	5,5	21	15	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 4 mm).

Divider system TS3

with height separation made of plastic partitions

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4	16/42^*	8	2

^* for aluminum partitions

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Aluminum partitions in 1 mm width sections with a_x > 42 mm are also available.

a_x (vzdialenosť stredov deliacich priečok) [mm]
a_c (užitočná šírka vnútornej komory) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using plastic partitions with a_x > 112 mm, we recommend an additional center support with a twin divider (S_T = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Príklad objednania

TS3

Systém mriežok

Verzia

n_T

Komora

a_x

VR1

VR3

výškové rozdelenie

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

Pripojovacie prvky

Universal end connectors UMB – plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom, face on or from the side.

Recommended tightening torque: 27 Nm for cheese-head screws ISO 4762 - M8 - 8.8

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

U – universal mounting bracket

End connectors – plastic/steel

Plastic link end connector, steel end connector. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

A – threaded joint outside (standard)
I – threaded joint inside

Pripojovacia plocha

I – connection surface inside
A – connection surface outside

Príklad objednania

Plastic/steel

UMB

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

pripojeniesprvok

Plastic/steel

UMB

pripojeniebod

Spôsob pripojenia

Pripojovacia plocha

We recommend the use of strain reliefs at the driver and fixed point.
