Channel side wall
Al alloy
Standard lengths 1000 / 2000 mm
Special lengths on request

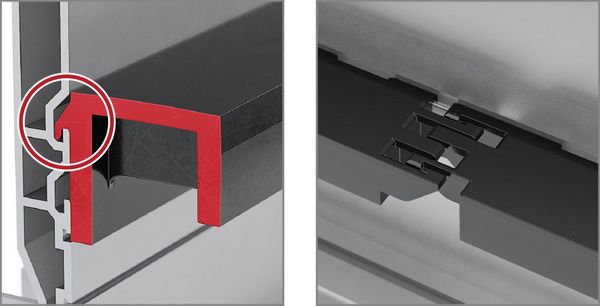

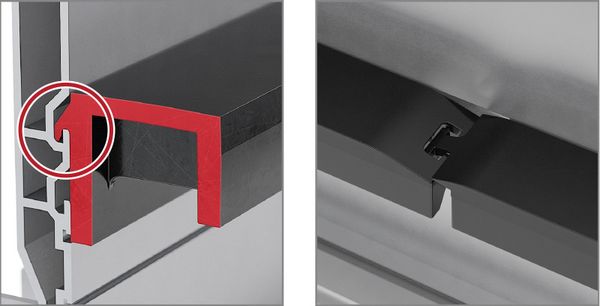

The Alu Guide System (TKAL) for long travel applications and high loads ensures secure guidance and smooth running of the energy chain in a gliding and rolling application.
The standardized channel profiles of 1000 / 2000 mm in length can be individually adjusted to the width of the chain. They can be quickly and easily be installed with the help of a mounting kit. Such UMB mounting kits are also available for attaching the fixed-point of the energy chain.
The optional damping band additionally reduces noise emission and guarantees an even quieter running of the chain.
TSUBAKI KABELSCHLEPP also offer the Alu Guide System (TKAL) together with the appropriate energy chain as well as with the ready-to-install TOTALTRAX® System including cables.
For One-sided arrangement of the cable carrier, the cable carrier slides behind the fixed point on a slide support with run-on bevels.
Channel profile with and without supports incl. run-on bevels.
Dirt and water can drop through without restrictions.
Channel profile with and without supports incl. run-on bevels.
Dirt and water can drop through without restrictions.

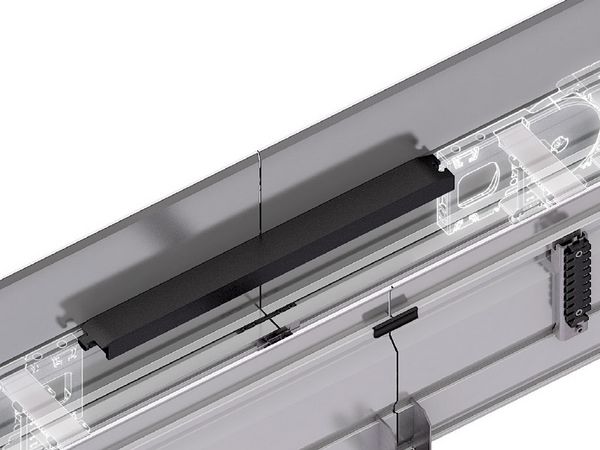

For opposite arrangement, a slide support with a minimum length of 500 mm is also attached for bridging between the fixed point connections.
Channel profile with and without supports incl. run-on bevels.
Dirt and water can drop through without restrictions.
Channel profile with and without supports incl. run-on bevels.
Dirt and water can drop through without restrictions.
TKAL 134
TKAL 195
TKAL 254
TKAL 274
* for C-profiles 3938/3939
** for C-profiles 3940/3941
As a standard, the mounting kits included with the delivery are installed on all joins as well as at both ends of a channel. If you require more angle brackets beyond this, please state this when ordering.
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UA1455 | |||||||||||
| Klzná podložka | 40 | 134 | Bk + 7 | Bk + 50 | Bk + 69 | BK + 25 | 25 | ||||
| UA1555 | |||||||||||
| Klzná podložka | 53 | 134 | Bk + 9 | Bk + 52 | Bk + 67 | BK + 27 | 25 | ||||
| UA1665 | |||||||||||
| Klzná podložka | 61,5 | 195 | Bk + 10 | Bk + 60,15 | Bk + 82,4 | BK + 28,6 | 45 | ||||
| UA1775 | |||||||||||
| Klzná podložka | 81 | 195 | Bk + 9 | Bk + 59,15 | Bk + 83,4 | BK + 27,6 | 45 | ||||
| UA1995 | |||||||||||
| Klzná podložka | 116 | 254 | Bk + 10,4 | Bk + 71,9 | Bk + 81 | BK + 45 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K0650 | |||||||||||
| – | 56,5 | 134 | Bk + 5 | Bk + 48 | Bk + 71 | BK + 23 | 25 | ||||
| Klzné krúžky | 56,5 | 134 | Bk + 13 | Bk + 56 | Bk + 63 | BK + 31 | 25 | ||||
| K0900 | |||||||||||
| – | 81 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 25 | ||||
| Klzné krúžky | 81 | 195 | Bk + 19 | Bk + 69,15 | Bk + 73,4 | BK + 37,6 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M0650 | |||||||||||
| Klzná podložka | 61,5 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
| Offroad klzná podložka | 61,5 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
| M0950 | |||||||||||
| Klzná podložka | 81 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
| Offroad klzná podložka | 86 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
| M1250 | |||||||||||
| Offroad klzná podložka | 103 | 274 | Bk + 6 | Bk + 67,5 | Bk + 97,4 | BK + 40,6 | 45 | ||||
| M1300 | |||||||||||
| Klzná podložka | 127,5 | 274 | Bk + 6 | Bk + 67,5 | Bk + 97,4 | BK + 40,6 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q040 | |||||||||||
| – | 40 | 134 | Bk + 4 | Bk + 47 | Bk + 72 | BK + 22 | 25 | ||||
| Q060 | |||||||||||
| Klzná podložka | 66,5 | 195 | Bk + 9 | Bk + 59,15 | Bk + 83,4 | BK + 27,6 | 45 | ||||
| Q080 | |||||||||||
| Klzná podložka | 86 | 195 | Bk + 13 | Bk + 63,15 | Bk + 79,4 | BK + 31,6 | 45 | ||||
| Q100 | |||||||||||
| Klzná podložka | 108 | 274 | Bk + 13 | Bk + 74,5 | Bk + 90,4 | BK + 47,6 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TKA38 | |||||||||||
| – | 36,5 | 134 | Bk + 4 | Bk + 47 | Bk + 72 | BK + 22 | 25 | ||||
| TKA45 | |||||||||||
| – | 53 | 134 | Bk + 5 | Bk + 48 | Bk + 71 | BK + 23 | 25 | ||||
| TKA55 | |||||||||||
| – | 66,5 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UAT1555 | |||||||||||
| – | 66,5 | 195 | Bk + 5 | Bk + 55,15 | Bk + 87,4 | BK + 23,6 | 45 | ||||
The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.
| Typový rad | Konštrukcia | h1 [mm] | hKA [mm] | b1 [mm] | b2 [mm] | b3 [mm] | BKA [mm] | T [mm] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TKHD85 | |||||||||||
| Klzná podložka | 254 | 90 | 254 | Bk + 6 | Bk + 67,5 | Bk + 85,4 | BK + 40,6 | 45 | |||
| TKHD90 | |||||||||||
| Klzná podložka | 127,5 | 274 | Bk + 6 | Bk + 67,5 | Bk + 97,4 | BK + 40,6 | 45 | ||||
| TKHD85-R | |||||||||||
| – | 84,5 | 254 | Bk + 6 | Bk + 67,5 | Bk + 85,4 | BK + 40,6 | 45 | ||||
| TKHD90-R | |||||||||||
| – | 117 | 274 | Bk + 6 | Bk + 67,5 | Bk + 97,4 | BK + 40,6 | 45 | ||||
As a standard, the mounting kits included with the delivery are installed on all joins as well as at both ends of a channel. If you require more angle brackets beyond this, please state this when ordering.
The internal or external mounting kits made of stainless steel are mounted at the joints, ensuring precise connection of the joints in addition to fastening the channel to the substructure.
The internal and external mounting kits made of stainless steel are mounted with a spacing of 30-500 mm from the joints, ensuring fastening of the channel to the substructure. The mounting kit does not necessarily have to be mounted at the joints.
* More information can be found on page assembly profiles for guide channels.
The mounting brackets are mounted at the outside of the channel.
The additional joint connectors ensure precise connection of the joints.
The mounting brackets are mounted at the inside of the channel.
The additional joint connectors ensure precise connection of the joints.
UMB mounting kit
The UMB mounting kit for fixed point ensures optimum fastening of the cable carrier in the channel and depends on the cable carrier type.
Holder set strain relief (optional)
The holders are mounted on the outside of the channel for fixed installation of cables.
The twin channel connectors enable the parallel arrangement of several channels.
All pictures of the mounting kit are exemplary.
To order the Alu Guide System, please provide the following information or the used cable carrier:
